Biofilm-forming capacity of two benthic microalgae, Navicula incerta

and Navicula sp., on three substrates (Naviculales: Naviculaceae)

Ana Lucía Gómez-Ramírez1, Luis Fernando Enriquez-Ocaña1, Anselmo Miranda-Baeza2,
Beatriz Cordero Esquivel3, José Antonio López-Elías1* & Luis R. Martínez-Córdova1*

1. DICTUS, Centro de Investigaciones Científicas y Tecnológicas, Universidad de Sonora, Colosio s/n, Hermosillo, Sonora, 83000, México; analuciagmzr@gmail.com, fernando.enriquez@unison.mx, jalopez@guayacan.uson.mx, lmtz@guaymas.uson.mx

2. Universidad Estatal de Sonora, Blvd. Manlio Fabio Beltrones 810, Bugambilias, Navojoa, Sonora, 85875, México; anselmo.miranda@ues.mx

3. CICESE, Centro de Investigación Científica y de Educación Superior de Ensenada, Carretera Ensenada-Tijuana 3918, Zona Playitas, Ensenada, B.C. 22860, México; bcordero@cicese.mx

* Correspondence

Received 01-XI-2018. Corrected 27-ii-2019. Accepted 06-v-2019.

Abstract: Benthic microalgae have the natural capacity to adhere to a diversity of fixed submerged substrates to form biofilms, which have important roles not only in natural ecosystems, but also in aquaculture systems. An experimental investigation was performed to assess the biofilm-forming capacity of two microalgae (Navicula incerta and Navicula sp.) on three different substrates (plastic net, fabric, and wood) under controlled temperature and light conditions. The substrates were arranged on curtains suspended from a wood stick, into plastic aquariums (45 L in capacity) filled with filtered marine water enriched with F/2 medium. The trial was carried out until the exponential growing phase of the microalgae was reached. After that, the incorporated biomass was gravimetrically calculated, and its biochemical composition was determined by standard methods. The greatest amount of incorporated dry matter was observed for Navicula sp. on fabric and the lowest was observed for wood. The highest number of cells associated with the biofilm was obtained for Navicula sp. on the plastic net (1.24 x 109 cells/m2), while the lowest was recorded for Navicula sp. on the wood (1.43 x 108 cells/m2). Significant differences in organic matter were found among the substrates, with the highest values for N. incerta on the fabric (3.22 g/m2) and the lowest for Navicula sp. on the wood (0.02 g/m2). The best biochemical profiles among the formed biofilms were observed for N. incerta on the plastic net and Navicula sp. on the fabric. The plastic net was considered the best substrate because of the stability of the biofilm and the easiness of harvesting the biomass.

Key words: benthic microalgae; biofilm-forming capacity; biomass production; substrates; Bacillariophyceae; diatomea; Navicula.

A biofilm is defined as a consortium of microorganisms (including phyto and zoo biota) associated with an organic matrix and adhered to a fixed submerged surface (Pandey, Bharti, & Kumar, 2014; Gatune, Vanreusel, & De Torch, 2017). The matrix of extracellular polymeric substances (EPS) is excreted by the microorganisms of the consortium, mainly benthic microalgae and bacteria, and serves to improve the adherence of the organisms, forming the community and facilitate the interactions among them (Barranguet et al., 2005). A biofilm can be formed on diverse types of substrate and many studies have been focused on determining the efficiency in the biofilm production, testing substrates such as dead leaves, wood, roots, soil, stones, bamboo, plastic, glass, fabrics, among others (Danilov, & Ekelund, 2001; Christenson & Sims, 2012). Depending on the type and nature of the substrate, the composition and number of microorganisms in the biofilm and its stability may vary significantly. The artificial substrates introduced into water environments to promote biological colonization have been widely used to characterize the algal communities inhabiting those environments, as well as the colonization patterns, succession, and productivity dynamics of the algal communities and pollution (Kardel, Carrano, Blersch, & Kaur, 2015; Kristein, Wichels, Krohne, & Gerdts, 2018). The microorganisms constituting the consortium are important for transferring organic materials among diverse trophic levels, improving the efficiency of the trophic chain and maintaining the water quality (Thompson, Abreu, & Wesielesky, 2002).

Microalgae are a promising source of aquatic pollution remediation, biomass for biofuels and a source of protein, besides they have an important role in aquaculture; they are widely used as feed for the larvae of crustaceans and fishes and for larval, juvenile and adult mollusks (Martínez- Córdova, López, & Enríquez, 2014). This is because of their adequate biochemical composition, as they are rich in macronutrients such as protein (25 - 50 %), carbohydrates (up to 40 %) and lipids (approximately 20 %); additionally, they contain fiber, starch, cellulose, vitamins (mainly B complex and C), pigments (carotenoids), and secondary metabolites with an important role as active compounds. The dried biomass, organic matter and biochemical composition of the diverse microalgae species may vary greatly depending on environmental conditions, including light intensity, salinity, temperature, and nutrient availability, among others (Brown, Jeffrey, Volkman, & Dunstan, 1997; Olivera, 2002; Li et al., 2007; Cabello-Paisini, Macias, Abdala, Korbee, & Figueroa, 2011; Fimbres-Olivarría, 2011).

Diverse microalgal specie have been used for aquaculture; among the diatoms, one of the most important genera is Navicula, which contains planktonic and benthic species (López- Elías et al., 2013). Many studies have demonstrated that benthic diatoms are the main components of marine biofilms when enough light and nutrients are present (Patil & Anil, 2005). The main benthic microalgae belong to the genera Achnanthes, Amphora, Cymbella, Navicula, Licmophora and Oscillatoria, with Navicula being one of the most abundant (Khatoon, Yusoff, Banerjee, Shariff & Mohamed, 2007; Dobretsov, 2010).

Benthic microalgae usually adhere to fixed submerged surfaces forming biofilms. Therefore, cultivating them on substrates of different nature can influence its capacity for adhesion and nutritional composition. The present study was focused on assessing the biofilm-forming capacity of two benthic microalgae using three substrates.

MATERIALS AND METHODS

Selected strains and experimental design: The selected strains were Navicula incerta and Navicula sp. The strain of N. incerta was provided by the collection of the Center for Scientific Research and Higher Education of Ensenada, México (CICESE) with code number NVI1, while Navicula sp. was obtained from the collection of the Department of Scientific and Technological Research of the University of Sonora (DICTUS) at Hermosillo, Sonora, México.

Two experimental trials were performed, one for each species. A one-way completely randomized experimental design with four replicates per treatment was performed (n = 4). The treatments consisted of each one of the substrates: black plastic mesh (High Density Polyethylene - HDPE), white jute fabric, and wood (tongue depressor), which were selected considering the price, availability, and facility of management. The surface evaluated for each substrate were: 16 380 cm2 for plastic mesh, 874.8 cm2 for wood and 17 550 cm2 for fabric, and they were arranged as curtains pending from a wood stick into aquariums with 45 L of marine filtered water, fertilized with F/2 sterile medium, with a concentration of 106 µM of sodium metasilicate Na2SiO3 (Guillard & Ryther, 1962). Microalgae were stocked at a density of 20 000 cells/mL for Navicula sp. and 50 000 cells/mL for N. incerta. They were grown under controlled conditions of laboratory: temperature (20-22 °C), enough aeration and constant light. Cold-light fluorescent lamps of 60 W were provided to maintain a continuous irradiance around 260 μmol m-2/seg-1 in the culture, which last five days. Every 24 h the number of cells per milliliter was counted, taking randomly 1 cm2 of the corresponding substrate (n = 118), which was vigorously re-suspended in 1 ml of sterile marine water, and observed in a Neubauer chamber using an optical microscope (Carl Zeiss Axiostar plus) with the objective 10X (López- Elías, Huerta, Murguía & Mercado, 2012). For the calculus the next formula was used:

#cells/ ml = (total number of cells/

number of squares counted) (104).

Analysis of Biofilms: At the end of the trial, the dry matter, organic matter and ash of the formed biofilms were evaluated. The entire biomass attached into each substrate was removed and re-suspended in 5 L of sterile marine water. Subsamples of 300 ml from each treatment (n = 20) were filtered through Whatman GF/C 47 mm paper filters and weighed with a digital balance (OhausR); they were then dried at 65 °C for 8 h in an incubator oven (CSE Chicago Surgical Electrical Co), weighed again, incinerated in a muffle oven (TerlabMR) at 480 °C for 16 h and weighed once more (López- Elías et al., 2012).

For the determination of biochemical composition of the biofilms, the protein analysis (n = 21) was performed according to Lowry, Rosebrough, Farr, and Randall, (1951), and lipids (n = 21) the method of Pande, Khan, and Venkitasubramanian, (1963) was applied; both modified by López- Elías et al. (2012). The carbohydrate content was calculated as the rest of the dry matter minus the protein, lipids and ash.

For the statistical analysis of data, a one-way ANOVA was performed with a confidence level of P < 0.05. When significant differences were observed among means of any of the variables, a posteriori Tukey test was applied to order and rank the means. The software JMP for SAS (SAS, 2010) was used for the analysis.

RESULTS

Dry and organic matter: For Navicula sp., the greatest quantity of dry matter associated with the biofilm was recovered from the fabric (6.64 ± 0.76 g/m2), followed by the plastic net, while the wood had the lowest amount. For N. incerta, the greatest quantity of dry matter was obtained also from the fabric (6.11 ± 0.62 g/m2), followed by the plastic net and wood (Table 1). For organic matter, the pattern was similar: for N. incerta, a significantly greater quantity was found on the fabric (3.22 ± 0.16 g/m2), followed by the plastic. For Navicula sp., the greatest amount was also recovered from the fabric (1.56 ± 0.20 g/m2), followed by the plastic, while the wood had the lowest amount for both species. The type of wood selected was too smooth, and the biofilm that formed over it had poor stability and disaggregated in a short time. The fabric substrate did not maintain its consistency during the trial, and part of it was incorporated into the biofilm and counted as biomass. Additionally, it was difficult to recover that biomass because of the porosity of the material. The plastic mesh has a non-smooth texture and is very porous, which permits an acceptable adherence of the microorganisms and an excellent stability during all the trial.

Number of cells: Regarding the number of microalgal cells adhered to the surfaces, the greatest values were recorded for Navicula sp., and the plastic net was the most effective substrate (1.24 x 109 cells/m2) (F = 1.585, P = 0.233). Significant differences in the number of cells adhered to the biofilm were observed among species and substrates, with the higher values for N. incerta (1.1 x 109 cells/m2 (F = 7.003, P = 0.003) when the substrate was plastic net, and the lowest for Navicula sp. (1.43 x 108 cells/m2) when the substrate was wood (Fig. 1).

Substrates effectiveness: In the present study, the biofilm formed over the wood was not stable along the cultivation time, due to its smooth texture, which makes that the biofilm not attached at all. The fabric, despite its porosity, which permits that an acceptable amount of matter adhered to the biofilm, difficult recovering the algal biomass grown in the pores; additionally, the material of the fabric disintegrated along the trial. The plastic mesh has a non-smooth texture and is very porous, which permits an acceptable adherence of the microorganisms and an excellent stability during all the trial.

Biochemical composition: Regarding the biochemical composition of the formed biofilm, significant differences were found between the two microalgae as well as among the substrates evaluated. The protein content was significantly higher (F = 6.043, P = 0.018) in biofilms formed by Navicula sp. on the fabric and by N. incerta on the plastic net compared to those formed by N. incerta on the fabric and Navicula sp. on the plastic net. The lipid concentration was significantly higher (F = 87.646, P = 0) for Navicula sp. regardless of the substrate. The highest carbohydrate content was observed for N. incerta. (F = 13.612, P = 0.001) on the wood and fabric (Table 2).

DISCUSSION

In the present study, the rough surfaces showed to be more efficient for biofilm formation with benthic diatoms, as previously documented by other authors (Fernandes Da Silva et al., 2008), disagreeing to the reported by Sweat and Johnson (2013) who found that benthic diatoms have a greater ability to colonize smooth surfaces. The surface texture is an important factor that influences microalgae attachment to different substrates. Wrinkled and porous surfaces are associated with a greater adherence of organisms and organic matter due to a larger area and major protection against hydraulic forces (Babu, 2011). Cellulose- based materials as jute, achieved greater attachment than synthetic polymers as HDPE; however, the downside to porous materials such as jute fabric in our study was the difficulty in harvesting the algal biomass growing in the pores (Christenson & Sims, 2012). The adherence and stability of the biofilm greatly depends also on factors such as the type of culture, the culture medium and the substrate (Johnson & Wen, 2010; Shen, Zhang, Xu, Lin, 2015; Dang & Lovell, 2016; Miao et al. 2019). Some environmental parameters, including irradiance, temperature, salinity and nutrient content, can also influence the colonization patterns (Tyler & Allen, 2011).

Diverse materials have been assessed as biofilm surfaces for mobile microalgae such as Chlorella sp. or benthic species; these substrates include polystyrene foam, carton, nylon, fabrics, glass, bamboo, and many others (Johnson & Wen, 2010). Azim et al. (2002) demonstrated that crystal tubes and bamboo, due to their higher densities, were able to support a more diverse peryphitic community than cane bagasse and wood. Similarly, Khatoon et al. (2007) reported that bamboo, PVC and plastic sheets had adequate peryphyton colonization in shrimp aquaculture ponds in Malaysia. Hashimoto, Vasquez, Kitamura, and Satuito (2016) evaluated diatom communities associated with biofilms in vertically submerged glass surfaces in the Sea of Japan, and they reported that Navicula and Nitzschia were the dominant genera in the study.

Some characteristics of the substrates have a significant effect on the colonization patterns in benthic microalgae; for instance, the texture and porosity of tissue favor adherence and biofilm formation (Viau et al., 2013; Kardel et al., 2015). In aquaculture, biofilms have been proven to maintain or improve water quality and the production response of diverse farmed species, mainly fish (Keshavanath et al., 2001; Mata, Luza, & Riquelme, 2017) and shrimp (Kent, Browdy, & Letter, 2011). For this activity, a wide variety of substrates have been used, including biodegradable materials (bamboo, wood, and diverse fabrics), no degradable materials (fiberglass, glass bottles, nylon, PVC, and plastic sheets), and specially designed materials known as AquamatsTM (Ferreira, Lara, Wilson, & Abreu, 2016).

Johnson and Wen (2010) conducted an investigation to produce biofuels from the microalga Chlorella sp., and they reported that the biomass and lipid content were strongly influenced by the type of substrate used, with polystyrene foam being the best material for that purpose (25.65 g/m2 of dry matter and 2.31 g/m2 of lipid content). Christenson and Sims (2012) found higher concentrations of microalgal biomass on the surfaces of natural polymers (cotton and jute) compared to that of synthetic polymers (nylon, polypropylene and acrylic). The disadvantage of porous materials, such as polyurethane, jute, vegetal foam and nylon foam, is the difficulty in recovering the biomass that embeds into the pores (Johnson & Wen, 2010).

It is common to find differences in the biochemical composition of microalgae among species and even between the same species depending on the culture conditions. Flores- Vergara, (1998) found that for benthic microalgae cultured under different conditions of light intensity and temperature, the concentration of protein ranged from 11 to 69 %, the carbohydrates from 2 to 40 %, and the lipids from 1.8 to 45 %. Similarly, Fimbres- Olivarría et al. (2015) reported concentration values in Navicula sp. ranging from 12 to 22 % for protein, 3 to 4 % for carbohydrates, and 14 to 35 % for lipids. Courtois, Porta, Viera, Fernández, and Izquierdo (2012) found values in N. incerta of 6 to 8 % for lipids, 13 % for protein and 20 to 27 % for carbohydrates.

The major component of both species in this study was the carbohydrates. The high carbohydrate content found in all the treatments (26 - 42 %) could be attributed to the presence of diverse extracellular polymeric substances (EPS), mainly polysaccharides excreted by the microalgae, which are rich in glucose and galactose (Leal et al., 2013; Klein et al., 2014; Van Colen, Underwood, Serôdio, & Peterson, 2014). It has been reported that benthic microalgae have a high polysaccharide content (Leal, Miranda, Curbelo, & Hernández, 2010) and the production of these components is affected by the time of cultivation, the nutrient concentration and the substrate (Shen et al., 2015). The EPS play an important role in the formation process of the biofilms by facilitating adhesion and providing nutrients for bacteria and other microorganisms, as well as protection against hydraulic forces (Wingender et al., 1999; Decho, 2000).

In the present study, the biochemical profiles of some of the biofilms formed by both species on a particular substrate, specifically the protein content of Navicula sp. on the fabric and N. incerta on the plastic net (approximately 24 and 20 %, respectively), seem suitable as complementary food sources for farmed fish and shrimp.

From the results obtained in this study, we can conclude that: the two microalgae could form biofilms on the three evaluated substrates; however, the amount of adhered dry and organic matter and the number of microalgal cells associated with the biofilms varied significantly. The plastic net was considered the best substrate due to its biochemical composition, the stability of the biofilm and the easiness in recovering the material. The proximate biochemical composition of the biofilms also varied widely among species and substrates. In some of the cases, the biochemical composition of the biofilm was adequate to be considered a complementary feed source and, in the future, they could be incorporated in larvae cultures as shrimps. We suggest that the beneficial effects of this biofilms need to be analyzed before commercial applications.

Ethical statement: authors declare that they all agree with this publication and made significant contributions; that there is no conflict of interest of any kind; and that we followed all pertinent ethical and legal procedures and requirements. All financial sources are fully and clearly stated in the acknowledgements section. A signed document has been filed in the journal archives.

ACKNOWLEDGMENTS

We want to thank CONACYT (The Mexican Council of Science and Technology) for the financial support of Project 222722, from which these results came.

RESUMEN

Capacidad de formación de biopelículas de dos microalgas bentónicas, Navicula incerta y Navicula sp., en tres sustratos (Naviculales: Naviculaceae). Las microalgas bentónicas tienen la capacidad natural de adherirse a diversos sustratos fijos sumergidos para formar biopelículas, las cuales tienen roles importantes no solo en ecosistemas naturales sino también en sistemas de producción acuícolas. Se llevó a cabo una investigación experimental para evaluar la capacidad formadora de biopelículas de dos microalgas bentónicas (Navicula incerta y Navicula sp.) en tres diferentes sustratos (malla plástica, tela y madera), bajo condiciones controladas de temperatura y luz. Los sustratos fueron arreglados a manera de cortinas suspendidas de un tubo de PVC dentro de acuarios de plástico (45 L de capacidad) con agua marina enriquecida con el medio F/2. El experimento se llevó hasta que la fase de crecimiento exponencial de la microalga fue alcanzada. Posteriormente la biomasa incorporada fue calculada gravimétricamente, y su composición bioquímica fue determinada por métodos estándar. La mayor cantidad de materia seca se observó para N. incerta en el sustrato de tela y la menor se encontró en el de madera. El mayor número de células asociadas a la biopelícula fue registrado para Navicula sp. en malla plástica (1.24 x 109 cel/m2), mientras que el menor se encontró para Navicula sp. en madera (1.43 x 108 cels/m2). Diferencias significativas en cuanto a materia orgánica se encontraron entre los sustratos y las especies, con valores más altos para N. incerta en tela (3.22 g/m2) y más bajos para Navicula sp. en madera (0.02 ± 0.05 g/m2). Los mejores perfiles bioquímicos para las biopelículas correspondieron a las formadas por N. incerta sobre malla plástica y Navicula sp. sobre tela. La red de plástico se consideró el mejor sustrato debido a la estabilidad de la biopelícula y la facilidad para cosechar la biomasa.

Palabras clave: microalgas bentónicas; formación de biopelículas; producción de biomasa; sustratos; Bacillariophyceae; diatomea; Navicula.

REFERENCES

Azam, F., Fenchel, T., Field, J. G., Gray, J. S., Meyer-Reil, L. A., & Thingstad, F. (1983). The ecological role of water-column microbes in the sea. Marine Ecology Progress Series, 10, 257-263.

Azim, M. E., Verdegem, M. C. J., Khatoon, H. M., Wahab, A., van Dam, A. A., & Beveridge, M. C. M. (2002). A comparison of fertilization, feeding and three periphyton substrates for increasing fish production in freshwater pond aquaculture in Bangladesh. Aquaculture, 212, 227-243.

Babu, M. (2011). Effect of Algal Biofilm and Operational conditions on Nitrogen removal in Wastewater Stabilization Ponds (PhD dissertation). Wageningen University, Wageningen, Netherlands.

Barranguet, C., Veuger, B., Van Beusekom, S. A. M., Marvan, P., Sinke, J. J., & Admiraal, W. (2005). Divergent composition of algal-bacterial biofilms developing under various external factors. European Journal of Phycology, 40(1), 1-8.

Brown, M. R., Jeffrey, S. W., Volkman, J. K., & Dunstan, G. A. (1997). Nutritional properties of microalgae for mariculture. Aquaculture, 151, 315-331.

Cabello-Paisini, P., Macias, C. A., Abdala, V., Korbee, R. N., & Figueroa, F. L. (2011) Effect of nitrate concentration and UVR on photosynthesis, respiration, nitrate reductase activity, and phenolic compounds in Ulvarigida (Chlorophyta). Journal of Applied Phycology, 23, 363-369.

Christenson, L. B., & Sims, R. C. (2012). Rotating algal biofilm reactor and spool harvester for wastewater treatment with biofuels by-products. Journal Bioengineering Biotechnology, 109, 1674-1684.

Courtois, de V. G., Porta, A., Viera, M. P., Fernández, P., & Izquierdo, M. S. (2012). Effects of density on growth rates for four benthic diatoms and variations in biochemical composition associated with growth phase. Journal of Applied Phycology, 24, 1427-1437.

Danilov, R. A., & Ekelund, N. G. A. (2001). Comparison of usefulness of three types of artificial substrata (glass, wood and plastic) when studying settlement patterns of periphyton in lakes of different trophic status. Journal Microbiology Methods, 45, 167-170.

Dang, H., & Lovell, C. R. (2016). Microbial surface colonization and biofilm development in marine environments. Microbiology and Molecular Biology Reviews, 80, 91-138.

Decho, A.W. (2000). Microbial biofilms in intertidal systems: an overview. Continental Shelf Research, 20, 1257-1273.

Dobretsov, S. (2010). Marine Biofilms. In S. Dürr, & J. C. Thomason (Eds.), Biofouling (pp. 123-136). Oxford, UK: Wiley-Blackwell, Ltd.

Fernandes, D. S. C., Ballester, E., Monserrat, J., Geracitano, L., Wasielesky, W., & Abreu, P. C. (2008). Contribution of microorganisms to the biofilm nutritional quality: protein and lipid con- tents. Aquaculture Nutrition, 14, 507-514.

Ferreira, M. H., Lara, G., Wilson, W. Jr., & Abreu, P. C. (2016). Biofilm versus biofloc: Are artificial substrates for biofilm production necessary in the BFT system? Aquaculture International, 24, 921-930.

Fimbres-Olivarría, D. (2011). Evaluación del crecimiento, biomasa y producción de carotenoides de Dunaliella sp. a diferentes concentraciones de nitrógeno (Tesis Maestría). Universidad de Sonora, México.

Fimbres-Olivarría, D., López, E. J. A., Martínez, C. L. R., Carvajal, M. E., Enríquez, O. L. F., Valdéz, H. E., & Miranda, B. A. (2015). Growth and biochemical composition of Navicula sp. cultivated at two light intensities and three wavelengths. Bamidgeh, 67, 1-7.

Flores-Vergara, C. (1998). Crecimiento y composición bioquímica de microalgas bentónicas cultivado bajo diferentes condiciones de temperatura e intensidades de luz (Tesis Maestría). Centro de Investigación Científica y de Educación Superior de Ensenada, México.

Gatune, C., Vanreusel, A., & De Torch, M. (2017). Sunlight and sediment improve the environment of a litter biofilm-based shrimp culture system. Aquaculture Environment Interactions, 9, 73-85.

Guillard, R. R. L., & Ryther, J. H. (1962). Studies on marine planktonic diatoms I. Cyclotella nana (Husted) and Denotula confervacea (Cleve). Canadian Journal of Microbiology, 8, 229-239.

Hashimoto, K., Vasquez, H. E., Kitamura, H., & Satuito, C. G. (2016). Variation in the abundance of periphytic algae in marine biofilms on glass surfaces submerged in the sea off Shin-Nagasaki Port, Nagasaki, Japan. Sessile Organisms, 33(2), 29-37.

Johnson, M. B., & Wen, Z. (2010). Development of an attached microalgal growth system for biofuel production. Applied Microbiology Biotechnology, 85, 525-534.

Kardel, K. Carrano, A. L., Blersch, D. M., & Kaur, M. (2015). Preliminary Development of 3D-Printed Custom Substrata for Benthic Algal Biofilms. Mary Ann Liebert, Inc., 2, 12-19.

Kent, M., Browdy, C. L., & Leffler, J. W. (2011). Consumption and digestion of suspended microbes by juvenile Pacific white shrimp, Litopenaeus vannamei. Aquaculture, 319, 363-368.

Keshavanath, P., Gangadhar, B., Ramesh, T. J., Beveridge, M. C. M., van Dam, A. A., & Verdegem, M. C. J. (2001). On-farm evaluation of Indian major carp production with sugarcane bagasse as substrate for periphyton. Asian Fisheries Society, 14, 367-376.

Khatoon, H., Yusoff, F., Banerjee, S., Shariff, M., & Mohamed, S. (2007). Use of periphytic cyanobacterium and mixed diatoms coated substrate for improving water quality, survival and growth of Penaeus monodon Fabricius postlarvae. Aquaculture, 271, 196-205.

Klein, G., Pierre, G., Bellon-Fontaine, M. N., Zhao, J. M., Breret, M., Maugard, T., & Graber, M. (2014). Marine diatom Navicula jeffreyi: from biochemical composition and physico- chemical surface properties to understanding the first step of benthic biofilm formation. Journal of Adhesion Science and Technology, 28, 1739-1753.

Kristein, I. V., Wichels, A., Krohne, G., & Gerdts, G. (2018). Mature biofilm communities on synthetic polymers in seawater - Specific or general? Marine Environmental Research, 142, 147-154.

Leal, S., Miranda, B. A., Curbelo, R., & Hernández, J. (2010). Las diatomeas bentónicas como fuente de alimento en el cultivo larvario de camarón y otros organismos acuáticos. Avances en Nutrición Acuícola X. Memorias del X Simposio Internacional de Nutrición Acuícola, México.

Leal, S., Medina, M. A., Guerrero, M. A., Piña, P., Nieves, M., & Curbelo, R. (2013). Concentración y composiciones orgánica y proximal de dos especies de diatomeas bentónicas a diferentes salinidades. Universidad & Ciencia, 29(1), 45-52.

Li, H., Cheng, K., Wong, C., Fan, K., Chen, F., & Jiang, Y. (2007). Evaluation of antioxidant capacity and total phenolic content of different fractions of selected microalgae. Food Chemistry, 102, 771-776.

López- Elías, J. A., Huerta, A. N., Murguía, L. A., & Mercado, C. L. R. (2012). Manual de laboratorio de cultivos de apoyo acuícola. Hermosillo, Sonora: Editorial Universidad de Sonora.

López- Elías, J. A., Fimbres, O. D., Medina, J. L. A., Miranda, B. A., Martínez, C. L. R., & Molina, D. M. A. (2013). Producción de biomasa y carotenoides de Dunaliella tertiolecta en medios limitados en nitrógeno. Phyton, 82, 4-11.

Lowry, O. H., Rosebrough, N. J., Farr, A. L., & Randall, R. J. (1951). Protein measurement with the Folin phenol reagent.  Journal of Biological Chemistry, 193, 265-275.

Martínez- Córdova, L. R., Martínez, C. M., López, E. J. A., & Enríquez, O. L. F. (2014). Uso de microorganismos en crustáceos. Biotecnia, 4(3), 50-55.

Mata, M. T., Luza, M. F., & Riquelme, C. (2017). Production of diatom–bacteria biofilm isolated from Seriola lalandi cultures for aquaculture application. Aquaculture Research, 48, 4308-4320.

Miao, L., Wang, P., Hou, J., Yao, Y., Liu, Z., Liu, S., & Li, T. (2019). Distinct community structure and microbial functions of biofilms colonizing microplastics. Science of Total Environment, 650, 2395-2402.

Olivera, A. (2002). Valor nutricional de microalgas. Revista da ABCC, 4(2), 63-68.

Pande, S., Khan, R. P., & Venkitasubramanian, T. (1963). Microdetermination of lipids and serum total fatty acids. Analytical Biochemistry, 6, 415-423.

Pandey, P. K., Bharti, V., & Kumar, K. (2014). Biofilm in aquaculture production. African Journal of Microbiology Research, 8, 1434-1442.

Patil, J. S., & Anil, A. C. (2005). Quantification of diatoms in biofilms: Standardization of methods. Biofouling, 21, 181-188.

Ramesh, M. R., Shankar, K. M., Mohan, C. V., & Varghese, T. J. (1999). Comparison of three plant substrates for enhancing carp growth through bacterial biofilm. Aqua Engineering, 19, 119-131.

JMP. (2010). SAS Institute Inc., Cary, NC, 1989-2019.

Shen, Y., Zhang, H., Xu, X., & Lin, X. (2015). Biofilm formation and lipid accumulation of attached culture of Botryococcus braunii. Bioprocess and Biosystems Engineering, 38, 481-488.

Sweat, L. H., & Johnson, K. B. (2013). The effects of fine-scale substratum roughness on diatom community structure in estuarine biofilms. Biofouling, 29, 879-890.

Tuchman, M. L., & Stevenson, R. J. (1980). Comparison of clay tile, sterilized rock, and natural substrate diatom communities in a small stream in southeastern Michigan, USA. Hydrobiology, 75, 73-79.

Thompson, F. L., Abreu, P. C., & Wasielesky, W. (2002). Importance of biofilm for water quality and nourishment in intensive shrimp culture. Aquaculture, 203, 263-278.

van Dam, A. A., Beveridge, M. C. M., Azim, M. E., & Verdegem, M. C. J., (2002). The potential of fish production based on periphyton. Reviews in Fish Biology and Fisheries, 12, 1-31.

Tyler, E. I., & Allen, G. D. (2011). Species and material considerations in the formation and development of microalgal biofilms. Applied Microbiology and Biotechnology, 92, 283-294.

Van Colen, C., Underwood, G. J. C., Serôdio, J., & Paterson, D. (2014). Ecology of intertidal microbial biofilms: Mechanisms, patterns and future research needs. Journal of Sea Research, 92, 2-5.

Viau, V. E., Moreira, de S. D., Rodríguez, E. M., Wasielesky Jr., W., Abreu, P. C., & Ballester, E. L. C. (2013). Biofilm feeding by postlarvae of the pink shrimp Farfantepenaeus brasiliensis (Decapoda, Penaidae). Aquaculture Research, 44, 783-794.

Wingender, J., New, T. R., & Flemming, H. C. (1999). Microbial Extracellular Polymeric Substances. In J. Wingender, T. R. New, & H. C. Flemming (Eds.), What are bacterial extracellular polymeric substances? (pp. 93-112). Berlin: Springer-Verlag.

Gómez-Ramírez, A. L., Enriquez-Ocaña, L. F., Miranda-Baeza, A., Cordero Esquivel, B., López-Elías, J. A., & Martínez-Córdova, L. R. (2019). Biofilm-forming capacity of two benthic microalgae, Navicula incerta and Navicula sp., on three substrates (Naviculales: Naviculaceae). Revista de Biología Tropical, 67(3), 599-607.

TABLE 1

Dry and organic matter (g/m2), and cellular density (cells/m2) of the biofilms formed by Navicula sp.

and N. incerta (in plastic, fabric and wood substrates)

Specie

Substrate

Dry matter

Organic matter

Cell density

Plastic

2.83a ±٠.٢٣

1.32b ± 0.17

1.24a x 109 ± ٦.٢x١٠8

Navicula sp.

Fabric

6.64b ± 0.76

1.56b ± 0.20

4.54 a x 108 ± ١.٤x١٠8

Wood

0.3a ± 0.09

0.02a ± 0.01

1.43 a x 108 ± ٥.٨x١٠7

Plastic

4.55b ± ٠.٣١

2.53b ± 0.19

1.1 b x 109 ± ١.٤x١٠8

N. incerta

Fabric

6.11b ± ٠.٦٢

3.22b ± 0.16

8.8 ab x 108 ± ٩.٥x١٠7

Wood

0.2a ± 0.05

0.073a ± 0.02

5.6 a x 108 ± ٦.٦x١٠7

ANOVA P < 0.05

Specie

Substrate

0.003

0.003

0.045

0

0.234

0.003

Different letters in the same column indicate significant differences at P < 0.05.

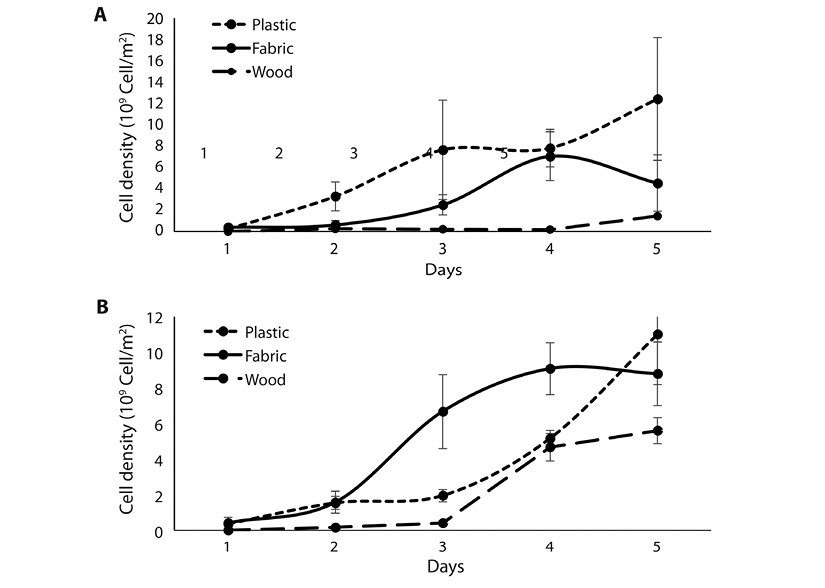

Fig. 1. Growth of Navicula sp. (a) and N. incerta (b) in plastic, fabric and wood substrates.

TABLE 2

Final biochemical composition (%) of the biofilm formed by Navicula sp. and N. incerta

in plastic, fabric and wood substrates

Specie

Substrate

Protein

Lipids

Carbohydrates

Navicula sp.

Plastic

11.90a ± 1.95

8.72a ± 0.8

37.06a ± 3.37

Fabric

24.19b ± 2.21

12.38a ± 0.9

36.67a ± 3.10

Wood

21.55b ± 1.95

11.23a ± 0.8

35.65a ± 2.74

N. incerta

Plastic

21.17b ± 1.95

5.38a ± 0.8

33.45a ± 2.74

Fabric

2.73a ± 0.5

3.05a ± 1.38

54.19b ± 4.74

Wood

11.68a ± 1.9

2.37a ± 0.8

54.19b ± 4.74

ANOVA P < 0.05

Specie

Substrate

0.988

0.018

0.306

0

0.003

0.001

Different letters in the same column indicate significant differences at P< 0.05.
