Systematics and phylogeny of Oecopetalum (Metteniusaceae), a genus of trees endemic to North and Central America

Humberto Adrián Hernández Urban1, Diego F. Angulo2, Maite Lascurain-Rangel3,
Sergio Avendaño-Reyes4, Lilia Lorena Can5, Gregory W. Stull6 & Rodrigo Duno de Stefano5,7*

1. Maestría en Biociencias, Departamento de Zoología, Escuela Nacional de Ciencias Biológicas, Instituto Politécnico Nacional, Prolongación de Carpio y Plan de Ayala s/n, 11340 México, D.F., México;

hernandez_urban2010@yahoo.com.mx

2. Departamento de Ecología, Campus de Ciencias Biológicas y Agropecuarias, Universidad Autónoma de Yucatán, AP 4-116, Colonia Itzimna, 97100, Mérida, Yucatán, México; diangulo@gmail.com

3. Red Ambiente y Sustentabilidad, Instituto de Ecología, A. C., Apartado Postal 63, 91000 Xalapa, Veracruz, México; maite.lascurain@inecol.mx

4. Instituto de Ecología, A.C. Herbario XAL, México; sergio.avendano@inecol.mx

5. Herbario CICY, Centro de Investigación Científica de Yucatán, A. C., Calle 43 No. 130, Col. Chuburna de Hidalgo, 97200 Merida, Yucatán, México; loreca@cicy.mx

6. Department of Ecology and Evolutionary Biology, University of Michigan, 1105 N. University Ave, Ann Arbor, MI 48109 U.S.A.; gwstull@gmail.com

7. Herbario CICY, Centro de Investigación Científica de Yucatán, A. C. (CICY), Calle 43 No. 130, Col. Chuburna de Hidalgo, 97200 Merida, Yucatán, México; roduno@cicy.mx

* Correspondence

Received 23-v-2018. Corrected 11-iii-2019. Accepted 16-vii-2019.

Abstract: Oecopetalum Greenm. & C.H. Thomps. (Metteniusaceae) is distributed in the southeastern portion of Mexico to Central America (Guatemala, Nicaragua, and Costa Rica). Three species have been described. We studied herbarium specimens of the genus Oecopetalum and performed a phylogenetic analysis based on the plastid genes matK and ndhF to answer several major questions: How many species are in the genus Oecopetalum? Is Oecopetalum monophyletic, and how is the genus related to other members of the family? Our results indicate that Oecopetalum is monophyletic, with only two species, and sister to the Asian genus Pittosporopsis. The Trans-Atlantic relationship of Oecopetalum and Pittosporosis is a recurrent geographic pattern in the families Metteniusaceae and Icacinaceae. Our results, in agreement the fossil record and previous phylogenetic studies, support the boreotropical model of high-latitude terrestrial migrations of tropical taxa during the globally warm Paleocene-Eocene.

Key words: boreotropical hypothesis; Icacinaceae; Metteniusaceae; Neotropics; Phylogeny; Taxonomy.

The genus Oecopetalum Greenm. & C.H. Thomps. (type species = O. mexicanum) was described from the state of Veracruz, Mexico, and assigned originally to the family Icacinaceae (Greenman & Thompson, 1914). Two more species were later added: O. greenmanii (Standley & Steyermark, 1940) and O. guatemalense (Howard, 1940). The genus can be recognized by the following combination of characters: tall trees with malpighiaceous hairs with unequal arms; inflorescence a large dichotomous cyme; flowers with an accrescent calyx and fleshy petals, with well-developed central nerves and margins on the inner faces; stamens with a large anther, connective in the form of an “X” in cross-section and introrse dehiscence. These characters are very distinctive among members of Icacinaceae s.l. (Howard, 1942; Kårehed, 2001). The genus is endemic to the New World, found in southern Mexico and Central America.

The first phylogenetic study of the Icacinaceae, based on combined molecular and morphological characters, showed Oecopetalum to be part of the ‘Emmotum group’ comprising six genera: Calatola, Emmotum, Oecopetalum, Ottoschulzia, Platea, and Poraqueiba (Kårehed, 2001). Two others studies (Angulo, Duno de Stefano, & Stull, 2013; Byng, Bernardini, Joseph, Chase, & Utteridge, 2014) suggested that Oecopetalum is the sister group of Ottoschulzia. Finally, a comprehensive phylogenetic analysis of the clade Lamiidae, using extensive data from the plastid genome, proposed a new classification of the whole clade, including the recognition of a reduced Icacinaceae (with 23 genera and 160 species) and an expanded Metteniusaceae (with 11 genera and 59 species; Stull, Duno de Stefano, Soltis, & Soltis, 2015). Although Metteniusaceae was previously considered monotypic, this expanded circumscription included Emmotum and related genera from the New and Old Worlds. Notably, Oecopetalum was found to be sister to the monotypic Asian genus Pittosporopsis, which previously had never been included in a phylogenetic analysis (Stull et al., 2015). This relationship had never been suggested before in the literature.

There is only one systematic treatment of Oecopetalum, including fewer than ten herbarium specimens (Howard, 1940). It was mentioned that the recognized species are similar but distinguishable from each other based on the number of secondary nerves in the leaves, the size of the flowers, and the general leaf shape. However, these differences might not be sufficient for the recognition of three separate species. In this study, therefore, we evaluate the hypothesis that the genus Oecopetalum is monophyletic and includes three species (Howard, 1940). It is possible that the genus only comprises two species (Standley & Steyermark, 1949; Gutiérrez-Báez, 1994). We also evaluate which genus is the closest relative of Oecopetalum, given that recent studies have suggested two possible alternatives: Ottoschulzia (Angulo et al., 2013; Byng et al., 2014) and Pittosporopsis (Stull et al., 2015), although the first two studies did not include Pittosporopsis.

Our general objective is to assess the morphological variability of the genus based on examinations of herbarium material, and to evaluate the monophyly of the genus and confirm its sister group based on phylogenetic analyses using the plastid genes ndhF and matK.

MATERIALS AND METHODS

The morphological variability of the genus was evaluated using herbarium material (A, CHAPA, CHIP, CICY, ENCA, ENCB, F, GH, HUH, HULE, K, MEXU, MO, NY, US, XAL, acronyms as in Thiers (2010). Character data were obtained from hydrated flowers or direct observation of herbarium material with a Nikon SMZ800 microscope. Terminology follows the Systematic Association Committee for descriptive biological terminology (1962) for leaf shape and apex.

DNA from fresh leaves or herbarium samples was obtained (Table 1) using the DNeasy Plant Mini Kit (QIAGEN Inc., Valencia, California) following manufacturer’s protocol. The plastid genes matK and ndhF were used to facilitate compatibility with already-available datasets for Icacinaceae s.l. (e.g., Kårehed, 2001; Angulo et al., 2013; Byng et al., 2014); these genes have also proven useful for resolving genus-level relationships in Icacinaceae s.l. and angiosperms in general (e.g., Hilu et al., 2003; Angulo et al., 2013). To date, there have been no published studies using nuclear genes (other than 18S rDNA; Kårehed, 2001) for phylogenetic analyses of Icacinaceae or Metteniusaceae. Previously generated sequences of matK and ndhF (Kårehed, 2001; Angulo et al., 2013) were obtained from GenBank. Four new sequences were generated for this study. Table 1 shows accession numbers for all the sequences examined. PCR amplifications were performed using an Applied Biosytems Veriti 96 Well Thermal Cycler. Reagents volumes and PCR conditions were as follows:

matK: 25 µL of mix containing 7.1 µl H2O, 2.5 µl buffer, 2.5 µl MgCl2, 1 µl primer matK472F, 1 µl primer matK1248R, 5 µl Solution Q, 2.5 µl dNTPs, 0.4 µl TAQ polymerase, and 3 µl DNAc. PCRs were conducted using the following protocol: 94 ºC x 4 min + 35 cycles (94 ºC x 45 s + 48 °C x 48 s + 72 ºC x 60 s) + 72º x 5 min. The primer information for matK472F (5’-CCC RTY CAT CTG GAA ATC TTG GTT C-3’) and matK1248R (5’-GCT RTR ATA ATG AGA AAG ATT TCT GC-3’) was obtained from Yu, Xue and Zhou (2011).

ndhF: 25 µL of mix containing 10.8 µl H2O, 2.5 µl buffer, 1 µl MgCl2 ,1 µl primer 972F, 1 µl primer 2110R, 5 µl Solution Q, 1.5 µl dNTPs, 0.2 µl TAQ polymerase, and 2 µl DNAc. PCR’s were conducted using the following protocol: 94 °C x 4 min + 35 cycles (94 °C x 45 s + 49 °C x 90 s, 72 °C x 3 min), 72 ºC x 7 min. The primers 972 F (5’-GTC TCA ATT GGG TTA TAT GAT G-3’), and 2110 R (5’-CCC CCT AYA TAT TTG ATA CCT TCT CC-3’) were used (Olmstead & Sweere, 1994).

PCR products were sent to Macrogen Corea (http://www.macrogen.com/) for sequencing. The resulting DNA sequences were assembled and edited using BioEdit v 7.0.9 (Hall, 1999). The edited sequences in PhyDE v.0.9971 (http://www.phyde.de/download.html) were compared to the genetic data on GENBANK using the BLASTN tool. Each gene region (including the new and previously generated sequences) was separately aligned using ClustalW (Thompson, Higgins, & Gibson, 1994). Afterwards, alignments were manually refined according to criteria published by Wheeler (1996) to optimize homology. JmodelTest (Posada, 2008) was used to assess the best evolutionary model for each alignment suggested by the Akaike Information Criterion (AIC); GTR + I + G was selected for both ndhF and matK.

An exploratory phylogenetic analyses were performed with NONA (Goloboff, 1999), which was generated through Winclada (Nixon, 2002). To perform the parsimony analyses, uninformative characters were removed from the analysis and all statistics were calculated without them. To search for the shortest trees derived from this matrix, we employed the Parsimony Ratchet (Nixon, 1999), of which five hundred iterations under Fitch parsimony were run with the following search settings: 20 trees held at each iteration, and 10 % of the characters sampled in each iteration. Consensus trees were calculated using the strict consensus option in the program. To compare the internal support of clades, a bootstrap analysis was performed with 1 000 replicates and one tree held per replicate or iteration.

Bayesian analysis was performed with MrBayes v.3.2.5 (Ronquist et al., 2012). We performed a partitioned analysis, using the models inferred above for the two individual gene regions. The analysis included the default parameters of the software and was run for 5 million generations, with sampling every 1 000 generations and 25 % ‘burnin’ for two independent runs. Convergence between the runs was confirmed with Tracer v1.6 (Rambaut & Drummond, 2007). Posterior probabilities (PP) of ≤ 0.95 were considered weakly supported whereas PPs of 0.95-1.0 were deemed strongly supported (Alfaro, Zoller, & Lutzoni, 2003). Missing data were coded as “?”.

RESULTS

Phylogenetic analysis: The aligned matrix was 1 976 bp in length; 376 characters (19.03 %) were phylogenetically informative. The parsimony analysis yielded 16 equally parsimonious trees of 694 steps, a consistency index (CI) of 71, and a retention index (RI) of 71. The strict consensus of the most parsimonious trees identifies Oecopetalum as a monophyletic with 88 % bootstrap support, and Pittosporopsis as its sister genus with 72 % bootstrap support. The topology of the strict consensus tree is similar to the Bayesian analysis, thus only the last one is presented here.

The Bayesian analysis showed a tree (Fig. 1) with a trichotomy formed by 1) Cassinopsis; 2) Icacina + Mappia (both clades form Icacinaceae s.s.; Stull et al., 2015), and 3) the ‘clade A’ that includes the taxa corresponding to Metteniusaceae sensu Stull et al. (2015). Clade A also includes a trichotomy formed by three clades: 1) Apodytes + Dendrobangia + Rhaphiostylis; 2) Calatola + Platea, and 3) the ‘clade B’ that includes Emmotum, Metteniusa, Oecopetalum, Ottoschulzia, Poraqueiba, and Pittosporopsis. In clade B, there are two subclades: Emmotum + Poraqueiba, and the ‘C clade’ containing Metteniusa, Oecopetalum, Ottoschulzia, and Pittosporopsis. In clade C, Ottoschulzia is sister to the rest of the taxa and Metteniusa is sister to Oecopetalum + Pittosporopsis. In general, the posterior probabilities values are low with the exception of Icacina + Mappia and the relationships of the three accessions of Oecopetalum greenmanii with posterior probabilities greater than 0.90. Pittosporopsis is the sister group to Oecopetalum with a posterior probability support value of 0.80.

Morphological examination: We studied 93 specimens of the genus Oecopetalum from numerous herbaria, providing a more complete survey of morphological variation than possible in previous work (Howard, 1942). The study of this material allowed us to recognize two patterns of morphological divergence associated with the size of the flowers and the number of secondary nerves, with both variables associated. In other words, one grouping of specimens had small flowers up to 5.5 mm long and a leaf blade with seven to twelve pairs of secondary nerves, whereas the other grouping of specimens had large flowers up to 9 mm long and a leaf blade with four to eight pairs of secondary nerves. The first morphological group corresponds to Oecopetalum greenmanii and the second to O. guatemalense and O. mexicanum. Finally, we did not observe morphological differences between the latter two taxa and consequently we consider them conspecific.

Taxonomic treatment: Oecopetalum Greenm. & C.H. Thomps., Ann. Miss. Bot. Gard. 1(4): 408. 1914. Type: Oecopetalum mexicanum Greenm. & C.H. Thomps.

The generic epithet comes from house (οικοζ) and petal (πεταλου), in reference to the space that exists on each side of the middle nerve of the petals and in which the stamens are positioned.

Trees up to 30 m tall. Young branches cylindrical, generally all parts glabrous or slightly sericeous-puberulent, becoming glabrous with time; trichomes simple, formed by malpighiaceous hairs, with unequal arms, falling early. Leaves simple, alternate, without stipules; petiole up to 2 cm long, weakly furrowed, without a clear abscission line at base, glabrous to sericeous-puberulent; blade subcoriaceous, turning brown when dry, generally oblong to narrowly oblong, rarely elliptic, or slightly obovate, glabrous or slightly sericeous-puberulent on the abaxial face, especially on the main nerve, becoming glabrous over time, glabrous on the adaxial side; apex acuminate or acute, rarely obtuse; margin entire; base attenuate to round; nerves penninerved, brochidodromous, main vein prominent on the abaxial side, slightly depressed and visible on the adaxial side, 4-10 (12) pairs of secondary nerves, conspicuous, alternating; tertiary nerves forming a conspicuous reticulum. Inflorescences up to 10 cm long, axillary or falsely terminal, forming dichotomous cymes, densely flowered, axes and branches sericeous-puberulent, peduncle up to 3 cm long, green, white or reddish; bracts along the axes, concave, narrowly ovate to ovate, sericeous on the abaxial side, glabrous on the adaxial side, green, white or reddish; pedicels absent or up to 0.5 cm long, sericeous; bracteoles 1-2, concave, ovate to narrowly ovate, sericeous on the abaxial face, glabrous on the abaxial side, green, white or reddish, sometimes with simple protuberances. Flowers pentamerous, actinomorphic, hermaphroditic; one or two bracts per flower, at the base of the pedicel or in the middle, green, white or reddish, sometimes represented by small protuberances. Calyx slightly campanulate, persistent and accrescent in the fruit, sericeous in the abaxial face, lobes visible, triangular, concave; apex acute; margin entire, green. Corolla white, petals free, narrowly elliptical or narrowly oblong, sparsely sericeous or glabrous on the abaxial surface, hairy on the adaxial surface, mainly on the main nerve, slightly reflex; medium veins thickened and prominent in the adaxial surface; apex acute, slightly inflected; margin thickened towards the apex, green, white or reddish. Stamens alternate and coherent with petals, free; filaments thickened, straight, glabrous, white; anthers elongated, longer than the filament, sagittal, basifixed, slightly divergent at the base, yellow, theca separated by the connective, dehiscent by longitudinal grooves, introrse; connective narrowly ovate, “X” shaped in cross-section. Disk absent. Pistils conical, glabrous, rarely slightly hairy, ovary 1-locular, 2 seminal rudiments pendulous, collateral; style up to 0.4 mm long; stigma capitate or slightly bilobed. Fruit a subglobose drupe, slightly compressed giving rise to two small and almost inconspicuous ribs, glabrous; apex apiculate with persistent style of up to 0.5 cm long; the calyx persistent; triangular lobes, glabrous; exocarp reddish-brown, rugose; scarcely fleshy mesocarp; endocarp thin, hard; seed solitary.

Distribution: Oecopetalum is endemic to the Neotropics, distributed in North America (Chiapas, Oaxaca, Tabasco, and Veracruz of Mexico) and Central America (Guatemala, Nicaragua, and Costa Rica). It has not been collected in El Salvador or Honduras. Together with Calatola, this genus represents the northernmost limit of Metteniusaceae in the Neotropics.

Uses and common names: Oecopetalum mexicanum and O. greenmanii have edible fruits. The first species is known in Veracruz as cachichín, which is a Totonaca word meaning “bitter fruit” (Lascurain-Rangel, Avendaño-Reyes, & López-Binnqüist, 2014); Oecopetalum greenmanii is known by a range of names; in Oaxaca, Chiapas, and Tabasco it is called kakatez (or kakaté) (Tzeltal language), cacaté, jacaté, jamajuquilla (Tojolobal language), cacaté and jamacuquiaca (Zoque language, in Atakapa) (Martínez, 1987).

Seeds of both species (cachichín and cacaté) have a bitter taste, the aroma and texture being similar to the peanut (Lascurain et al., 2013). It is consumed at any time of the day, usually toasted and sometimes boiled. Sale represents an infrequement, temporary income for many families and is part of the local culture (Lascurain, López, & Zamora, 2009; Lascurain, López-Binnqüist, & Emery, 2016). Seeds of O. mexicanum contains high levels of protein (19.37 %) and polyunsaturated fatty acids (60.02 %). The highest percentage (0.04 %) of sugars occurs when the seed is toasted, 0.02 % when it is boiled, and 0.03 % raw (Carballo, 1996). The nutrient values (proteins, fats and sugars) are lower than those reported for Arachis hypogaea (Hernández et al., 2013).

The seed collection of Oecopetalum mexicanum is carried out during April and May. The fruits are collected from the ground with the aid of a stick. Cachichín harvesting is a traditional event, a form of entertainment, and an opportunity to spend time with friends and family. The amount of fruit collected can vary from 7 to 30 kg per day. People who go in groups and collect for commercial purposes can collect up to 500 kg or more in 15 or 20 days during the harvesting season. When collectors come home with the load, the fruit is spread out on the floor in every room, even under the bed and furniture, and left to dry in the shade for about 20 days. The dried fruit can be stored for up to five months if kept dry in plastic bags.

The wood of cachichín is used for the construction of houses and for firewood. It has been reported that, in green condition, it has similar resistance to that of pine (Lascurain et al., 2007). In Chiapas the cacaté is used as a shade tree on the coffee farms, with the name of palo quemado or cacaté, and it is also used for firewood.

Key to the species of Oecopetalum

1. Flowers 5.0-5.5 mm long; corolla 5.0-6.0 mm long, white on the abaxial surface and reddish on the adaxial surface; stamens 4.5-5.0 mm long; pistil 1.3-1.5 mm long; leaf blade with 7-12 pairs of secondary nerves O. greenmanii

2. Flowers 7.0-9.0 mm long; corolla 7.5-8.3 mm long, white on both surfaces; stamens 5.0-7.0 mm long; pistil 2 mm long; leaf blade with 4-8 pairs of secondary nerves O. mexicanum

Oecopetalum greenmanii Standl. & Steyerm., Publ. Field Mus. Nat. Hist., Bot. Ser. 22 (3): 154. 1940. Type: Guatemala: Departament of Izabal, Río Dulce, 2-4 miles west of Livingston, on south side (left-hand side going up the rivers), at sea level, April 16, 1940, J. A. Steyermark 39526 (holotype, F). Fig. 2F, Fig. 2G, Fig. 2H, Fig. 2I, Fig. 3.

Trees 5-30 m tall. Leaves 13-27 cm long; petiole 0.8-2 cm long, slightly crooked, glabrous to sericeous-puberulent; lamina subcoriaceous, obovate, oblong, narrowly oblong or elliptic, rarely ovate, 12-25 x 3.5-9 cm, glabrous or slightly sericeous-puberulent on the abaxial surface, becoming glabrous, glabrous on the adaxial surface; apex shortly acuminate or acute; margin entire; base attenuate; 7-12 pairs of secondary nerves visible. Inflorescences up to 10 cm long, axillary or falsely terminal, cyme with all parts sericeous-puberulent, peduncle up to 3 cm long, sericeous-puberulent; bracts ovate, 2 x 1 mm, sericeous-puberulent on the abaxial side, glabrous on the adaxial side; bracteoles 1-2, ovate to narrowly ovate, 1 x 0.5 mm, sericeous-pubescent on the abaxial face, glabrous on the adaxial face, sometimes with simple protuberances. Calyx slightly campanulate, persistent and accrescent in the fruit, sericeous on the abaxial side; lobes triangular, 0.7-1 x 0.5-0.7 mm. Corolla white-light reddish, with narrowly oblong petals, 5-6 x 1.5-1.8 mm; scarcely sericeous or glabrous on the abaxial surface, slightly hairy on the adaxial surface on the main nerve; apices slightly reflexed. Stamens 4.5-5 mm long; filament 0.5-1.5 mm long; anthers 4 mm long. Pistil conical, 1.3-1.5 mm long, glabrous, rarely slightly hairy; style 3-4 mm long; stigma capitate or slightly bilobed. Fruit a subglobose drupe, slightly compressed on the longitudinal axis, giving rise to two ribs, 2-2.5 mm long, 1.5-1.8 mm wide, 1.8-2 mm in diameter, apex apiculate, with persistent style of up to 5 mm long.

Distribution and ecology: In Mexico (Chiapas and Tabasco), Guatemala (Izabal, San Marcos, Solola, and Suchitepequez), Nicaragua (Atlántico Sur, Jinotega, and Río San Juan) and Costa Rica (Puntarenas) (Fig. 3); in lowland forests to montane forests, 100-2 100 m.

Material examined: see Appendix 1

Taxonomic observations: The morphological differences with Oecopetalum mexicanum are primarily the size of the flower and especially the stamens, for which the ratio of anther to filament is greater in O. greenmanii. Also, the number of secondary nerves is useful for determination, but this character is not as clear as the size of the flowers. Another difference in the living plant is the color of the flower; O. greenmanii has white-light reddish petals, whereas the petals of O. mexicanum are strictly white. The fruit of O. greenmanii is also harder and slightly bigger.

Oecopetalum mexicanum Greenm. & C.H. Thomps., Ann. Missouri Bot. Garden 1: 408, plate 25. 1914. Type: México: Veracruz, Sierra Madre near Miscantla (sic), August, 1912, C. A. Purpus 6159 (holotype, F; isotype, MO). Fig. 2A, Fig. 2B, Fig. 2C, Fig. 2D, Fig. 2E, Fig. 3.

Oecopetalum guatemalense R.A. Howard, J. Arnold Arbor. 21: 483, tab. 3. 1940. Type: Guatemala: Suchitepequez: Finca Moca, 1 140 m., Jan. 8, 1935, Skutch 2028 (holotype, A; isotype, F, NY).

Trees 9-20 m tall. Leaves subcoriaceous; petiole 0.7-2.0 cm long, slightly crooked, glabrous, sparsely sericeous to sericeous-puberulent; oblong, narrowly oblong, narrowly ovate or elliptical, 9.0-30.0 x 3.5-10.0 cm, glabrous or sericeous-puberulent on the abaxial surface, especially on the main nerve, which becomes glabrous; apex short acuminate or acute, rarely obtuse; margin entire; base flattened to rounded; secondary veins 4-8 pairs, visible. Inflorescences up to 10 cm long, axillary or falsely terminal, top dichotomous, all parts sericeous-puberulent; peduncle up to 2.5 cm long, sericeous-puberulent; bracts narrowly ovate or ovate, 3.0 x 1-1.5 mm, sericeous-puberulent on the abaxial surface; bracteoles 1-2, ovate, 2.0 x 1.0 mm, sericeous-puberulent on the abaxial surface, sometimes with protuberances. Calyx slightly campanulate, persistent and accrescent on the fruit, sericeous on the abaxial surface, glabrous on the adaxial surface; lobes visible, triangular, 1 x 1 mm; apex acute. Corolla white, petals narrowly elliptical or narrowly oblong, 7.5-8.3 x 1.7-2.0 mm; scarcely sericeous or glabrous on the abaxial surface, glabrous on the adaxial surface, slightly reflexed. Stamens 5.0-7.0 mm long; filament 2.2-3.0 mm long; anthers 4.0-4.2(5.3) mm long. Pistil conical, 2.0 mm long, glabrous, rarely slightly hairy; style 4.0 mm long; stigma capitate or slightly bilobed. Fruit a subglobose drupe, slightly compressed on the longitudinal axis, giving rise to two ribs, 2.0-2.5 long, 1.5-1.8 mm wide,1.8- 2.0 mm diameter, apex apiculate; the persistent calyx 1.0-1.2 cm long, lobes triangular, 0.5 x 0.5 cm, glabrous.

Distribution and ecology: Southern Mexico (Chiapas, Oaxaca, Tabasco, and Veracruz) and Guatemala (Quetzaltenago, San Marcos, and Suchitepéquez). Montane forests, between 800 and 2 000 m.

Specimen examined: See Appendix 1.

Taxonomic discussion: O. guatemalense is considered conspecific with O. mexicanum as we did not find any significant morphological differences between these taxa. Our results support the findings of several previous papers (Standley & Steyermark, 1949; Gutiérrez-Báez, 1994) and call for the recognition of a single species: O. mexicanum (incl. O. guatemalense).

DISCUSSION

Oecopetalum is monophyletic and diagnosable by a unique suite of morphological characters; it also shares multiple morphological features with Pittosporopsis, including a cymose inflorescence (short in Pittosporopis, longer in Oecopetalum), stamens as long as petals, and a short style persistent in fruit. Our phylogenetic analyses recovered Oecopetalum and Pittosporopsis as sister genera, albeit with only moderate to weak support (posterior probabilities 80); however, this relationship was strongly supported in the plastome analyses of Stull et al. (2015).

Regarding the New World genera, some flower and fruit characters of Ottoschulzia resemble Oecopetalum. There is great morphological homogeneity in the populations of Oecopetalum that occupy an approximate extension area of 287 500 km2 from Oaxaca and Veracruz in Mexico to Puntarenas in Costa Rica. The genus has not been recorded in El Salvador or Honduras.

Within Oecopetalum, there are a few conspicuous differences between the two recognized species: the size of the flowers and the ratio of anther to filament. Another difference is the color of the inflorescence and flower; in Oecopetalum greenmanii the peduncle and main branches of the inflorescence are white and reddish; the petals are white reddish on the abaxial surface and reddish on the adaxial surface. Oecopetalum mexicanum has greenish or white inflorescences and flowers.

There is not a general geographical pattern regarding the morphology. We believed that the movement of propagules by local people from one site to another has disrupted any geographical distinction (some herbarium specimens blur this geographic distinction), for example a Pacific Coast and Atlantic Coast pattern or a North and South pattern.

Recent work has made important systematic changes to the family Icacinaceae s.l., beginning with the initial segregation of its members into four families, Cardiopteridaceae, Icacinaceae, Pennantiaceae and Stemonuraceae (Kärehed, 2001), followed by a further reduction of Icacinaceae (to 23 genera) and the recognition of an expanded Metteniusaceae with 11 genera (Stull et al., 2015). Comparing the results of this paper to those of previous studies (e.g., Käreded, 2001; Lens et al., 2008; Byng et al., 2014; Stull et al., 2015) is challenging due to differences in sampling of both taxa and molecular markers. The present tree (Fig. 1) is intermediate between the results of Byng et al. (2014) and Stull et al. (2015). The first study recovered Ottoschulzia as sister to Oecopetalum (Byng et al., 2014), which is supported by their shared distribution (the New World) and by floral similarities, but Pittosporopsis was not included in this study. The results presented here (although weakly supported) show Pittosporopsis, a monotypic genus from Southeast Asia, as the sister group of Oecopetalum, corroborating the results of Stull et al. (2015). Despite the low support (p.p) for a sister relationship between Pittosporopsis and Ottoschulzia, previous plastome analyses (Stull et al., 2015) that had good taxon sampling, showed maximum support for such a relationship. Also, our exploratory parsimony analysis shows the same topology despite featuring low bootstrap support (72 %). This transatlantic relationship is neither new nor surprising within the families Icacinaceae and Metteniusaceae. In the first case, there is the sister group relationship of Mappia (America) and Nothapodytes (Asia). In the second case, there are several transatlantic sister groups: the genera Calatola (America) and Platea (Southeast Asia), and Apodytes (Africa), Dendrobangia (America), and Rhaphiostylis (Africa and Madagascar). Several possible geologic scenarios might explain this pattern. Early studies on plant geography often attributed transatlantic disjunctions to the fragmentation of Gondwana (e.g., Raven & Axelrod, 1974), but the timing of this geologic process is not concordant with the fossil record of most disjunct angiosperm groups (e.g., Manchester, 1999; Christenhusz & Chase, 2012), e.g., Icacinaceae (Stull, Herrera, Manchester, Jaramillo, & Tiffney, 2012; Allen, Stull, & Manchester, 2015; Del Río, Haevermans, & De Franceschi, 2017). Instead, the Boreotropical model (Wolfe, 1975), in which high-latitude land bridges facilitated the spread of tropical taxa during the globally warm early Paleogene, better matches available phylogenetic and fossil evidence available for Icacinaceae, Metteniusaceae, and other plant groups, such as legumes (Lavin & Luckwoc, 1993) and Malpighiaceae (Davis, Bell, Fritsch, Mathews, & Donoghue, 2002).

The genus Oeceopetalum is monophyletic and includes two morphologically similar species, differing primarily in terms of floral features. Both species can be regarded as good candidates for future silvicultural programs. Pittosporopsis, an Asiatic genus, is the sister group of Oecopetalum. This transatlantic relationship is recurrent in Icacinaceae and Metteniusaceae. The Boreotropical model (high-latitude land bridges facilitated the spread of tropical taxa during the globally warm early Paleogene) appears to be the best explanatory model for this disjunction in light of available phylogenetic and fossil evidence.

ACKNOWLEDGMENTS

All original molecular work was done in the Laboratory of Molecular Markers (CICY). We remain especially grateful to Matilde Margarita Ortíz García, Verónica Limones Briones, and Silvia Hernández. Also, Daisy Pérez Brito and Raúl Tapia Tussell. We would like to thank the curators of the herbaria CIQR, ENCB, F, FCME, GH, GUADA, MEXU, UADY, UAMIZ, UCAM, and US whose material of Oecopetalum we borrowed and/or studied. Lastly, we would like to thank two anonymous reviewers and the journal editor who provided comments and suggestions that substantially improved this paper.

RESUMEN

Sistemática y filogenia de Oecopetalum (Metteniusaceae), género de árboles endémico de América del Norte y Central. El género Oecopetalum Greenm. & C.H. Thomps. (Metteniusaceae) se distribuye en el sureste de México y en América Central (Guatemala, Nicaragua y Costa Rica). Tres especies han sido descritas. Estudiamos especímenes de herbario de Oecopetalum y realizamos un análisis filogenético basado en los genes de los cloroplastos matK y ndhF para responder a las preguntas principales: ¿Cuántas especies hay en el género Oecopetalum? ¿Es Oecopetalum monofilético? ¿Cuáles son las relaciones genéricas con otros miembros de la familia? Oecopetalum es un género monofilético con solo dos especies y Pittosporosis es el grupo hermano. La relación transatlántica de Oecopetalum y Pittosporosis es un patrón geográfico recurrente en la familia Mettenuisaceae, así como en Icacinaceae. Nuestros resultados, en concordancia con la evidencia fósil y las relaciones de otros grupos, apoyan el modelo boreotropical de migraciones terrestres de táxones tropicales desde latitudes altas durante el Paleoceno-Eoceno, globalmente cálido.

Palabras clave: hipótesis boreotropical; Icacinaceae; Metteniusaceae; Neotrópico; Filogenia; taxonomía.

REFERENCES

Alfaro, M. E., Zoller, S., & Lutzoni, F. (2003). Bayes or Bootstrap? A Simulation Study Comparing the Performance of Bayesian Markov Chain Monte Carlo Sampling and Bootstrapping in Assessing Phylogenetic Confidence. Molecular Biology and Evolution, 20(2), 255-266.

Allen, S. E., Stull, G. W., & Manchester, S. R. (2015). Icacinaceae from the Eocene of western North America. American Journal of Botany, 102, 725-4.

Angulo, D. F., Duno de Stefano, R., & Stull, G. W. (2013). Systematics of Mappia (Icacinaceae), an endemic genus of tropical America. Phytotaxa, 116, 1-18.

Byng, J. W., Bernardini, B., Joseph, J. A., Chase, M. W., & Utteridge, T. M. A. (2014). Phylogenetic relationships of Icacinaceae focusing on the vining genera. Botanical Journal of the Linnean Society, 176, 277-294.

Carballo, L. (1996). Análisis fisicoquímico de alimentos e identificación de tóxicos de Oecopetalum mexicanum (“cachichín”) y Dioon spinulosum (“chicalito”) (Tesis Doctoral). Universidad Veracruzana-Xalapa, México.

Christenhusz, M. J. M., & Chase, M. W. (2012). Biogeographical patterns of plants in the Neotropics-dispersal rather than plate tectonics is most explanatory. Botanical Journal of the Linnean Society, 171, 277-286,

Davis, C. C., Bell, C. D., Fritsch, P. W., Mathews, S., & Donoghue, M. J. (2002). Laurasian migration explains Gondwanan disjunctions: Evidence from Malpighiaceae. Proceedings of the National Academy of Sciences, USA, 99, 6833-6837.

Del Río C., Haevermans, T., & De Franceschi, D. (2017). First record of an Icacinaceae Miers fossil flower from Le Quesnoy (Ypresian, France) amber. Scientific Reports, 7, 11099. DOI: 10.1038/s41598-017-11536-y

Greenman, J. J., & Thompson, C. H. (1914). Diagnoses of Flowering Plants, Chiefly From The Southwestern United States and Mexico. Annals of the Missouri Botanical Garden, 1, 405-413.

Goloboff, P. (1999). NONA (NO NAME) Version 2. Tucumán, Argentina. Retrieved from http://www.cladistics.com/downloads

Gutiérrez-Báez, C. (1994). Icacinaceae. Xalapa Flora de Veracruz. México: Instituto de Ecología, A.C.

Hall, T. H. (1999). BioEdit. A user-friendly biological sequence alignment editor and analysis program for Windows 96/98/NT. Nucleic Acid Symposium Series, 41, 95-98.

Hernández, B., Luna, G., García, O., Mendoza, M. R., Azuara, E., Beristain, C. I., & Jimenez, M. (2013). Extraction and characterization of Oecopetalum mexicanum seed oil. Industrial Crops and Products, 43, 355-359.

Hilu, K. W., Borsch, T., Müller, K., Soltis, D. E., Soltis, P. S., Savolainen, V, … Chatrou, L. W. (2003). Angiosperm phylogeny based on matK sequence information. American Journal of Botany, 90, 1758-1776.

Howard, R. A. (1940). Studies of the Icacinaceae, I Preliminary Taxonomic Notes. Journal of the Arnold Arboretum, 21, 462-489.

Howard, R. A. (1942). Studies of the Icacinaceae, IV. Considerations of the New World Genera. Contributions from the Gray Herbarium, 142, 1-60.

Kärehed, J. (2001). Multiple origin of the tropical forest tree family Icacinaceae. American Journal of Botany, 88, 2259-2274.

Lascurain, M., Ángeles-Álvarez, G., Ortega Escalona, F., Ordóñez, C. V. R., Ambrosio, M., & Avendaño, S. (2007). Características anatómicas y propiedades mecánicas de la madera de Oecopetalum mexicanum Greenm. & C.H.Thomps. (Icacinaceae) de la sierra de Misantla, Veracruz, México. Madera y Bosques, 13, 83-95.

Lascurain, M., Avendaño-Reyes, S., López-Binnqüist, C., López-Acosta, J. C., Covarrubias-Báez, M., & Duno de Stefano, R. (2013). Uso, aprovechamiento y diversidad vegetal asociada a Oecopetalum mexicanum (Icacinaceae): una especie comestible nativa de la Sierra de Misantla, Veracruz, México. Botanical Sciences, 91, 477-484.

Lascurain, M., López-Binnqüist, C., & Emery, M. R. (2016). Culture and Environment in the Sierra de Misantla, Veracruz, Mexico: The Case of Oecopetalum mexicanum. Madera y Bosques, 22, 11-21.

Lascurain, M., López-Binnqüist, C., & Zamora, P. (2009). Production chain of Oecopetalum mexicanum (Cachichín): a tropical fruit tree from México. Acta Horticulturae, 806, 519-524.

Lascurain-Rangel, M., Avendaño-Reyes, S., & López-Binnqüist, C. (2014). Use and associated woody flora of Oecopetalum mexicanum (Icacinaceae): An edible species native to the Sierra de Misantla, Veracruz, Mexico. Botanical Sciences, 91, 477-484.

Lavin, M., & Luckow, M. (1993). Origins and relationships of tropical North America in the context of the boreotropics hypothesis. American Journal of Botany, 80(1), 1-14.

Lens, F., Kårehed, J., Baas, P., Jansen, S., Rabaey, D., Huysmans, S., … Smets, E. (2008). The wood anatomy of the polyphyletic Icacinaceae s.l. and their relationships within asterids. Taxon, 57, 525-552.

Manchester, S. R. (1999). Biogeographical relationships of North American Tertiary floras. Annals of the Missouri Botanical Garden, 86, 472-522.

Martínez, M. (1987). Catálogo de nombres vulgares y científicos de plantas mexicanas. México, México: Fondo de Cultura Económica.

Nixon, K. C. (1999). The parsimony ratchet, a new method for rapid parsimony analysis. Cladistics, 15, 407-414.

Nixon, K. C. (2002). Winclada (BETA) Version. 1.00.08. Published by the author, Ithaca, USA. Retrieved from http://www.cladistics.com

Olmstead, R. G., & Sweere, J. A. (1994). Combining data in phylogenetic systematics: An empirical approach using three molecular data sets in the Solanaceae. Systematic Biology, 43, 467-481.

Posada, D. (2008). jModelTest: Phylogenetic Model Averaging. Molecular Biology and Evolution, 25, 1253-1256.

Raven, P. H., & Axelrod, D. I. (1974). Angiosperm biogeography and past continental movements. Annals of the Missouri Botanical Gardens, 61, 539-673.

Rambaut, A, & Drummond, A. J. (2007). Tracer vers. 1.4. Oxford, United Kingdon. Retrieved from https:// beast.bio.ed.ac.uk/Tracer

Ronquist, R., Teslenko, M., van der Mark, P., Ayres, D. L., Darling, A., Höhna, S., … Huelsenbeck, J. P. (2012). MrBayes 3.2: Efficient Bayesian Phylogenetic Inference and Model Choice Across a Large Model Space. Systematic Biology, 61, 539-542.

Standley, P. C., & Steyermark, J. A. (1940). Studies of American PlantsXI. Field Museum of Natural History. Botanical series, 22, 133-218.

Standley, P. C., & Steyermark, J. A. (1949). Icacinaceae en Flora of Guatemala. Fieldiana, Botany, 24, 225-229.

Stull, G. W., Duno de Stefano, R., Soltis, D. E., & Soltis, P. S. (2015). Resolving basal lamiid phylogeny and the circumscription of Icacinaceae with a plastome-scale data set. American Journal of Botany, 102(11), 1794-813.

Stull, G. W., Herrera, F., Manchester, S., Jaramillo, C., & Tiffney, B. H. (2012). Fruits of an “Old World” tribe (Phytocreneae; Icacinaceae) from the Paleogene of North & South America. Systematic Botany, 37, 784-794.

Systematic Association Committee for Descriptive Biological Terminology. (1962). Report of the Systematics Association Committee for Descriptive Biological Terminology, II and IIa. Terminology of simple symmetrical plane shapes (Charts 1, la). Taxon, 11, 145-247.

Thiers, B. (2010). Index Herbariorum: A global directory of public herbaria and associated staff. New York Botanical Garden’s Virtual Herbarium, New York. Retrieved from http://sweetgum.nybg.org/ih

Thompson, J. D., Higgins, D. G., & Gibson, T. J. (1994). CLUSTAL W: Improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic Acids Research, 22, 4673-4680.

Wheeler, W. C. (1996). Optimization alignment: The end of multiple sequence alignment in phylogenetics? Cladistics, 12, 1-9.

Wolfe, J. A. (1975). Some aspects of plant geography of the Northern Hemisphere during the late Cretaceous and Tertiary. Annals of the Missouri Botanical Garden, 62, 264-279.

Yu, J., Xue, J. H., & Zhou, S. L. (2011). New universal matK primers for DNA barcoding angiosperms. Journal of Systematics and Evolution, 49, 176-181.

Hernández Urban, H. A., Angulo, D. F., Lascurain-Rangel, M., Avendaño-Reyes, S., Can, L. L., Stull, G. W., & de Stefano, R. D. (2019). Systematics and phylogeny of Oecopetalum (Metteniusaceae), a genus of trees endemic to North and Central America. Revista de Biología Tropical, 67(4), 888-900.

TABLE 1

matK and ndhF sequences used in this study

matK

ndhF

Calatola mollis Standl.

1974ZAF2352347476C

17E6ZAB609617476C

Calatola costaricensis Standl.

18B2ZAB056071485C

17E6ZAB610618484C

Calatola laevigata Standl.

18B2ZAB046061490C

18B2ZAB078083489C

Cassinopsis ilicifolia Sleumer

AJ429312.1

AJ429110.1

Emmotum nitens (Benth.) Miers

KT738339.1

KT738623.1

Icacina senegalensis A. Juss.

AJ429313.1

AJ429111.1

Mappia mexicana B.L. Rob. & Greenm.

KT738351.1

KT738635.1

Metteniusa tesmannianna (Sleumer) Sleumer

KT738354.1

-

Oecopetalum greenmanii Standl. & Steyerm.

R. Duno de Stefano 2938

R. Duno de Stefano 2938

Oecopetalum greenmanii

R. Duno de Stefano 2938

R. Duno de Stefano 2938

Oecopetalum greenmanii

R. Duno de Stefano 2938b

Oecopetalum mexicanum Greenm & C.H. Thomps.

KT738359.1

KT738642.1

Ottoschulzia rhodoxylon (Urb.) Urb.

KT738361.1

KT738644.1

Pittosporopsis kerrii Craib

KX526705.1

KT738646.1

Platea latifolia Blumer

KR531369.1

KT738647.1

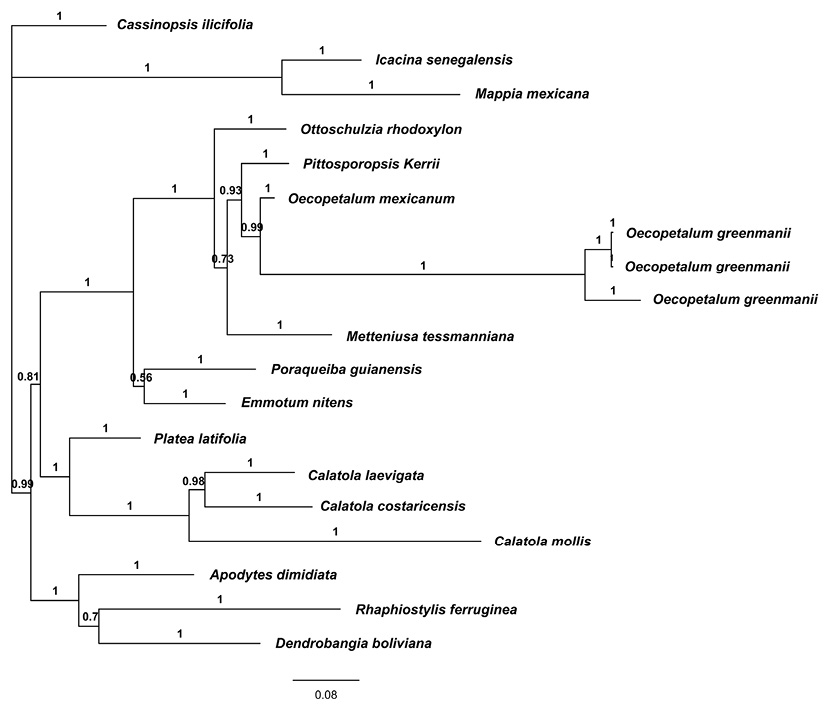

Fig. 1. Bayesian inference tree.

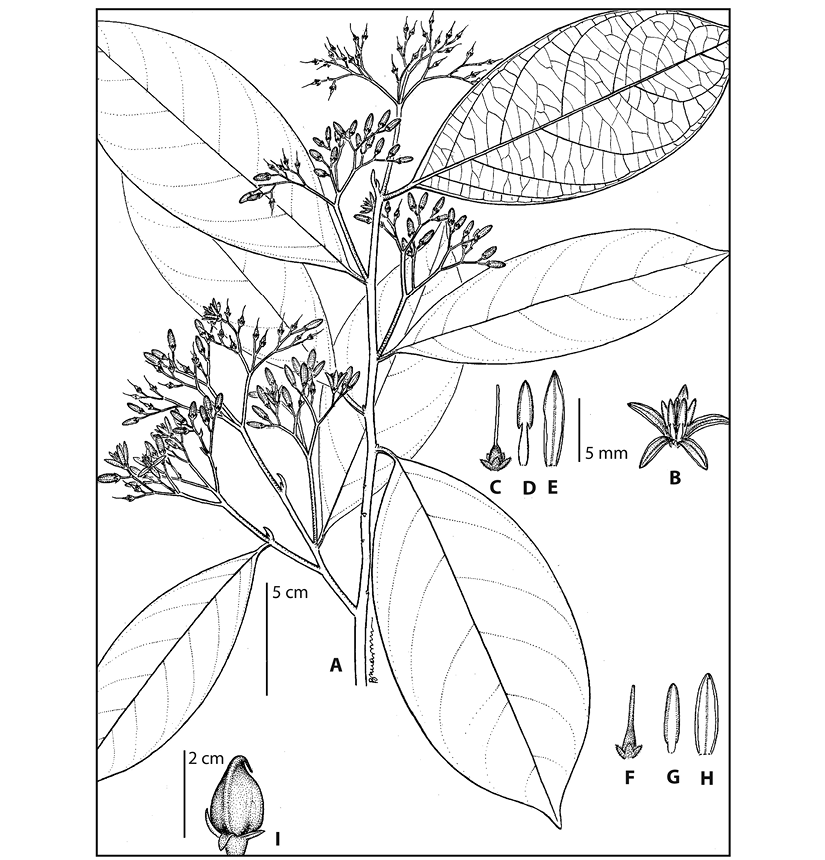

Fig. 2. Oecopetalum mexicanum A) Leaves; B) Flower; C) Pistil detail without petals; D) Stamen; E) Petal. Oecopetalum greenmanii F) Pistil detail without petals; G) Stamen; E) Petal, I) Single fruit. (O. greenmanii, MEXU E. Martínez S. 18030; O. mexicanum G. Ibarra et al. 3667, MEXU, Drawing Bruno Manara).

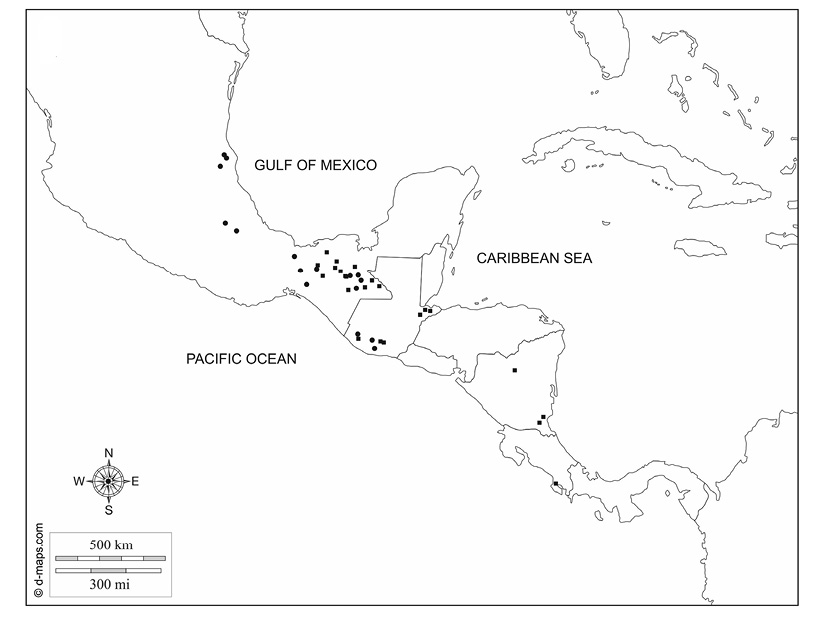

Fig. 3. Distribution of Oecopetalum greenmanii () and O. mexicanum (●).
