INTRODUCTION

Cone-beam computed tomography (CBCT) is a widely used radiological technology in dentistry that provides three-dimensional information of the maxillofacial region (1-3). Despite this benefit, there are concerns regarding the ionizing radiation doses associated with its use (4). This radiation, in addition to reaching the anatomical structures of interest, also affects nearby organs, some of which are radiosensitive (5). The thyroid gland is one of the most radiosensitive organs in the head and neck, and it is exposed to ionizing radiation during CBCT examination (6-8).

Children and young patients, especially girls, are groups of particular concern (4, 9-11). In children and young patients, the thyroid is smaller and positioned higher than in adults, resulting in higher radiation doses (4, 9, 10). Additionally, these patients have a longer life expectancy compared to adults (12), increasing the risk of long-term adverse radiation effects. Women have a 5.5 times higher risk of radiation-induced thyroid cancer than men from birth to age 10; however, this disparity decreases after this age (7, 11).

To establish guidelines and standards for ensuring the safety of individuals exposed to ionizing radiation, the International Commission on Radiological Protection has established three fundamental principles in radiological protection (10). One of these is the principle of optimization, also known as ALARA (As Low As Reasonably Achievable). This principle emphasizes the need to obtain images with radiation doses as low as reasonably possible, or as low as diagnostically acceptable (ALADA) (13). Due to variations among patients and exam indications, the acronym ALADAIP (As Low As Diagnostically Acceptable being Indication-oriented and Patient-specific) has also been proposed (14).

There are different strategies to reduce radiation doses, including the use of protective devices for the patient, such as a thyroid shield (TS) (7). When using a TS, it should not compromise the diagnostic quality of the image in the region of interest (7, 15).

There is global controversy regarding the use of TS during dental radiographic examinations (7, 9, 16-18). On one hand, some authors emphasize the benefits of using TS in CBCT examinations to reduce patient radiation doses (7, 9, 19); however, it is not recommended if the region of interest lies within the area covered by the TS or is close to its upper axial level, as it can interfere with image quality (7). On the other hand, recent American guidelines advise against the use of TS in dentistry (16, 17).

The aim of this review was to analyze the evidence and international recommendations regarding the use of TS in CBCT examinations.

METHODS

Search strategy

A systematic primary search was conducted in PubMed, Scopus and Web of Science on 20 October 2024, including articles in English from 2010 to date. The MeSH terms “Radiation Protection”, “Cone-Beam Computed Tomography” and “Thyroid Gland” and the free terms “Shielding”, “Cone-Beam CT” and “Thyroid” were used, related to the Boolean operators AND and OR in PubMed as follows: ("Thyroid" OR "Thyroid Gland"[Mesh]) AND ("Radiation Protection"[Mesh] OR "Shielding") AND ("Cone-Beam Computed Tomography"[Mesh] OR "Cone-Beam CT"). The search was adapted for the other databases. Weekly alerts were programmed in the three databases to keep the search updated and new articles were included using the same article selection strategy as the main search.

Inclusion and exclusion criteria

This search included articles that contained recommendations or benefits of using TS in CBCT, as well as those that advised against its use. Article selection was performed in two stages: title and abstract, and full text. Narrative reviews were excluded; systematic reviews were included, and the articles cited in these reviews were also analyzed to assess the inclusion of these articles in the present review, incorporating them in the complementary search. The complementary search was based on the review of guidelines, recommendations or articles from international organizations and world-renowned journals, published on their official website (Table 1).

Data extraction

The main reviewer (AC), a specialist in Oral and Maxillofacial Imaging with more than five years of experience, recorded the identified articles in an Excel spreadsheet (Microsoft Corporation, Redmond, WA, USA), indicating first author, year of publication, title of the article, name of journal and whether there are recommendations or benefits of using TS in CBCT, or whether its use is discouraged. Duplicated articles were manually eliminated. The main reviewer evaluated the articles at the title and abstract stages. In case of doubts about including an article at this stage, it was included for evaluation in the next stage. The full-text articles included were independently evaluated by the main reviewer and a second reviewer (LB), a specialist in Oral and Maxillofacial Imaging with more than five years of experience. In case of disagreement with a full-text article, a third reviewer (AH), a specialist and PhD in Oral and Maxillofacial Radiology, with more than 10 years of experience, was consulted. The article selection process was represented by a diagram (Figure 1).

RESULTS

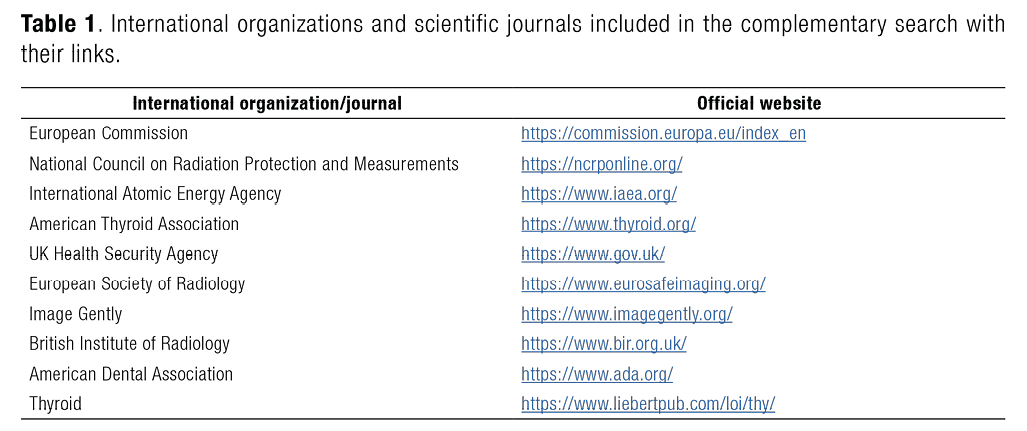

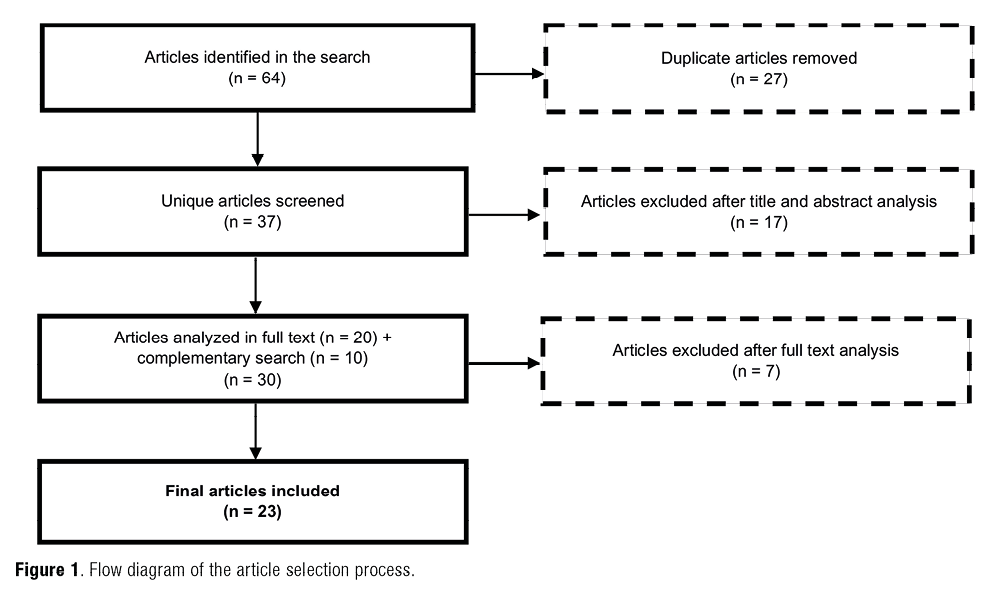

A total of 64 articles were identified across the three databases, of which 13 were ultimately included in this review. Additionally, 10 articles were selected by complementary search, which included three international guidelines on radiation protection (6, 20, 21) and seven expert recommendations (17, 22-27). This process resulted in a total of 23 articles included in the present review (Table 2).

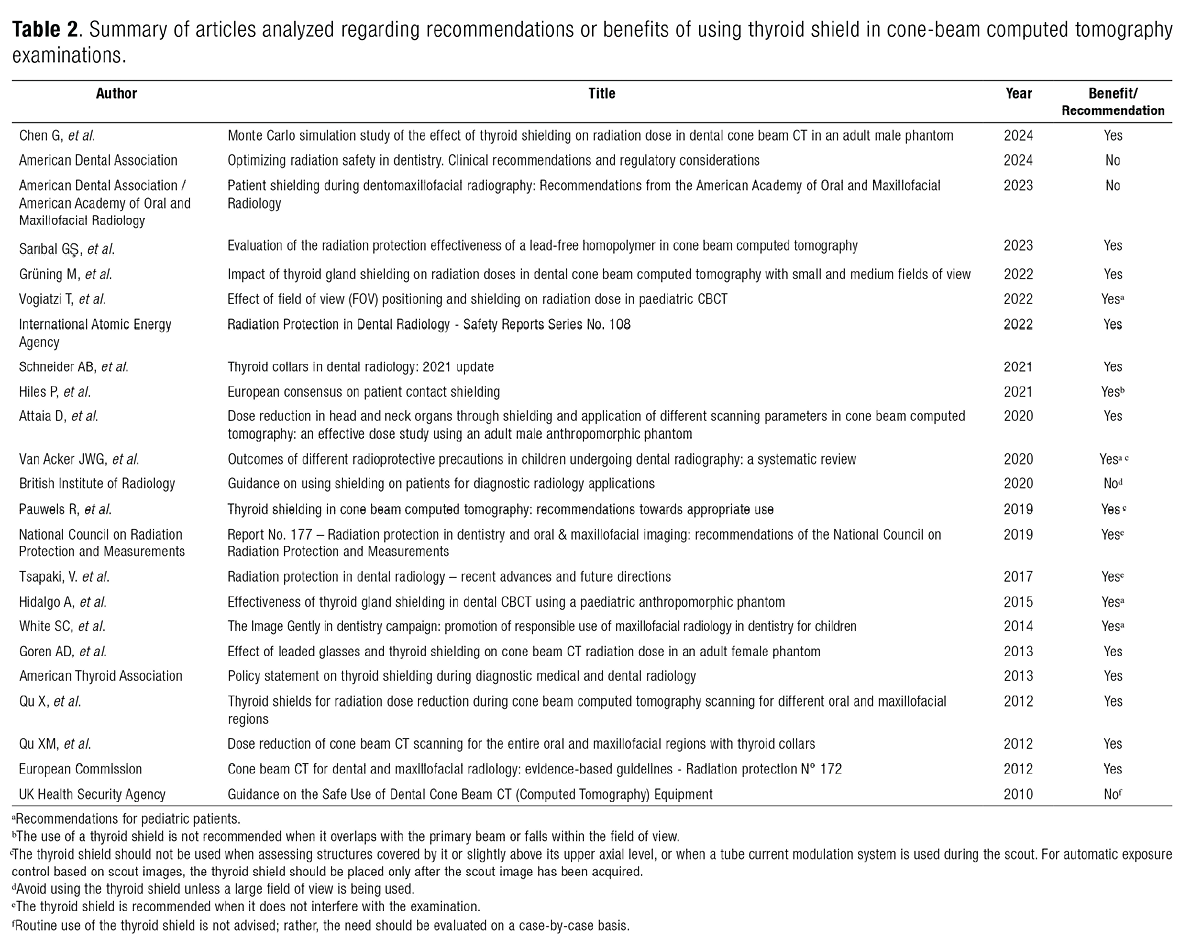

Of the 23 articles reviewed, 19 indicate that the use of TS in CBCT reduces radiation doses in patients or recommend its use in these examinations, as it provides a benefit to the patient (6, 7, 9, 19, 20, 22-26, 28-36). However, some of these articles highlight that there are specific cases where its use is not advised. On the other hand, two articles, from the British Institute of Radiology (21) and the UK Health Security Agency (27), do not recommend the use of TS in CBCT examinations, except in specific cases. Finally, two articles, both from the American Dental Association (ADA) (16, 17), oppose the use of TS in all maxillofacial radiographic examinations, including CBCT, and in any circumstances.

DISCUSSION

This review analyzed the international evidence and recommendations on the use of TS in CBCT examinations, evaluating the different criteria that exist worldwide, to guide better practices in dentistry. Most of the articles reviewed describe a decrease in radiation doses associated with the use of TS in CBCT or recommend its use for the same reason. This group includes, in addition to renowned researchers, world-leading international organizations, such as the European Commission, the National Council on Radiation Protection and Measurements of the United States, the International Atomic Energy Agency, the American Thyroid Association, among others.

The ADA communicated its position in favor of the use of TS in dental radiographic examinations in a guideline published in 2012 (37), covering regulatory and radiographic safety aspects. This guideline stated that all precautions should be taken to minimize radiation exposure, and therefore recommended the use of TS whenever possible. In 2023, the ADA published a new guideline based on the recommendations of the American Academy of Oral and Maxillofacial Radiology (16). In this new guideline, the ADA advises against the use of TS in dental radiology, including CBCT examinations, as it could generate artifacts that negatively affect the diagnosis quality in extraoral images. Additionally, they highlight that exposure to ionizing radiation in the general population from intraoral radiographic examinations has an insignificant impact on thyroid carcinogenesis. In this regard, the ADA also indicates that thyroid radiation doses in examinations with CBCT are within the range of those obtained with intraoral radiographs, suggesting comparability in terms of thyroid radiation doses between both modalities. Another argument of the ADA to advise against the use of TS is also that there are more effective strategies than the use of TS for reducing radiation doses in the patient, such as a correct indication of the radiographic examination, adequate collimation, and the use of digital equipment.

In 2024, the ADA published another article with clinical recommendations and regulatory considerations in the context of optimizing radiation safety in dentistry (17), based on the analysis of 95 documents. In this latest publication, the ADA again advises against TS in dental radiology, including CBCT examinations. However, the only citation supporting their recommendation is the article previously published by them (16), with the same justifications. Therefore, the ADA is the first and only organization worldwide that promotes the disuse of TS in dentistry.

Considering the ADA's rationale for formulating its recommendations, it is recognized that both radiation doses in dental radiology and the risk of radiation-induced cell damage are low (10). However, epidemiological studies have provided evidence of an increased risk of damage to the brain, salivary glands, and the appearance of thyroid tumors (6, 38) because of exposure to ionizing radiation in dental radiographic examinations. It should be noted that radiation doses in dental radiology are associated with stochastic effects, i.e. those that occur without a threshold dose level, whose probability of occurrence is proportional to the dose and its severity is independent of the dose (39). For this reason, strategies to reduce doses must be maximized, since the higher the radiation dose, the greater the probability of suffering cell damage. As noted by the ADA, it is accepted that there are more effective strategies than the use of TS to reduce radiation dose to the patient. However, based on the second principle of radiation protection, optimization or ALARA (10), radiographic images should be obtained with radiation doses as low as reasonably achievable. This second principle promotes the use of all strategies that minimize radiation doses, and not only those considered most effective.

In the present review, two other articles were found advising against the routine use of TS in CBCT examinations (21, 27), however, both were not as categorical in their recommendation as the ADA. In one of them, from the British Institute of Radiology (21), the use of TS is not recommended, except for large field of view, where there may be some benefit. The other article, from the UK Health Security Agency (27), although it does not recommend the routine use of TS, suggests evaluating the need for TS on a case-by-case basis.

The European Consensus (24) advises against the use of TS in all dental radiographs, when the TS is within the primary beam, stating that it can be used in those cases where the TS is outside the primary beam, except in cephalometric radiographs. Despite this recommendation, the European Consensus does not recommend the use of TS for examinations such as mammography, multidetector CT examinations, among others. However, the radiation dose that the thyroid could receive with these examinations would be similar to or higher than with CBCT (16). This situation could be due to the closer proximity of the thyroid to the primary beam during maxillofacial radiographic examination. Therefore, applying the inverse square law (5) and given the beam divergence, TS would fulfill its function in examinations with CBCT, but not in other radiographic examinations such as chest or breast, where the primary beam is not oriented towards the thyroid, and at the same time would be further away from it. For the use of TS to be effective, correct positioning of it in the patient is essential, since it has been shown that a poorly positioned TS decreases protection (31), and at the same time could alter the quality image, leading to the repetition of the examination (6).

It is widely accepted that, in some cases, the use of TS during CBCT examinations can alter image quality by generating artifacts (7). Regarding the interference of TS in the image, in the present review, several authors agree that TS should not be used when the region of interest corresponds to that covered by TS or that immediately adjacent to its upper axial level, since it could make diagnosis difficult (6, 7, 20, 33, 34). In this regard, some of the experimental investigations to determine radiation doses associated with the use of TS did not analyze the image quality obtained (19, 29-32, 35, 36), this being a primary factor in the decision-making regarding its use.

Some articles analyzed in the present review recommend the use of TS “where feasible” (28), “when it does not interfere with the examination” (22), or suggest "reducing thyroid radiation exposure as much as possible” (25), however, they do not specify which these situations are, so the recommendation could be ambiguous.

Regarding those articles that highlight the benefits of using TS in children in CBCT examinations (7, 9, 26, 32-34), the recommendations are addressed from different points of view, depending on the methodology used in each investigation. However, all these articles agree on the benefits of using TS in pediatric patients concerning the associated dose reduction. Even two of them (7, 33) recommend the use of TS in children routinely, except in those cases where the region of interest corresponds to that covered by the TS or that closest to its upper axial level.

The use of TS in CBCT may interfere with estimating the x-ray tube current settings in equipment equipped with an Automatic Exposure Control (AEC) system. In such systems, the x-ray tube current is automatically adjusted based on the scout views acquired during patient positioning. In this regard, the articles that mention this function (7, 9, 33) recommend placing the TS after acquiring the preliminary images to prevent interference with the x-ray tube current estimation, thereby avoiding an unnecessary increase in radiation dose. There is a second type of AEC system during scanning, corresponding to Tube Current Modulation (TCM). This is a real-time feedback system, which regulates the x-ray tube current based on the attenuation or reduction of the primary beam intensity (7). If part of the TS is within the primary beam, a counterproductive effect occurs, since the CBCT equipment overestimates the density of the patient, increasing the intensity of the beam, and generating greater radiation. In this case, the recommendation is to avoid the use of TS unless it is outside the primary beam with absolute certainty (7, 33).

In addition to the use of TS, some articles from the present review highlight other strategies to reduce radiation dose to the thyroid. If an adult patient is carefully positioned during CBCT examinations, the thyroid should be exposed only to secondary radiation (9). Also, one method to distance this gland from the primary beam is to position the patient with the chin elevated and the lower edge of the mandible parallel to the floor (12, 19). On the other hand, some of the recommendations analyzed also guide the selection of a field of view as small as possible, covering the region of interest with the lowest possible dose without compromising the diagnostic image quality (19, 29, 30, 34), to avoid irradiating unnecessary regions. Also, some articles claim that the effectiveness of TS increases with the use of larger field of view sizes or when the primary beam is closer to the thyroid (20, 32, 36).

It is essential to correctly identify those cases where TS should or should not be used, to avoid repeat examinations due to artifacts generated using TS. The TS models available are varied and not standardized (40); in addition, a wide range of CBCT equipment can be found on the market (4), each with varied fields of view and exposure parameters, which poses the challenge of identifying when the use of TS will interfere with the examination, so adequate operator training and education is essential (17).

In conclusion, although the reviewed articles do not agree on the recommendations or benefits of using TS in CBCT examinations, most studies indicate that TS usage reduces ionizing radiation doses. However, its use is not recommended when the region of interest is covered by the TS or is immediately adjacent to its upper axial level, as this can compromise image quality by generating artifacts, thereby hindering diagnosis. Given the varied and sometimes conflicting recommendations regarding the use of TS in CBCT examinations, further research is needed to achieve greater clarity and to unify criteria regarding TS use in CBCT examinations. Additionally, it is crucial to provide more explicit recommendations to address potential ambiguities, particularly in guidelines from international organizations. Clear guidance could help more professionals adopt better practices in radiation protection in dentistry.
